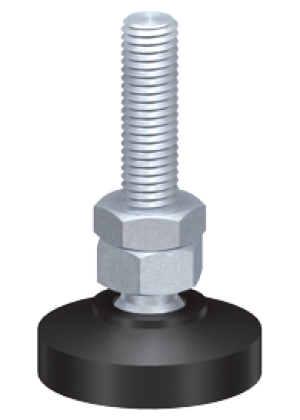

Adjustable Feet Ø 39

Application:
Height adjustable foot for leveling machines and structures. Any tipping is compensated by a ball and striker pad.
Read more

Product Information

Material: Pad: POM, black. Spindle & Hexagon nut SW 17: Steel, zinc-plated
Max. Load (kg): 150
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
Type: Feet
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Description Hmin (mm) Weight (g)
Get quote 2 Adjustable Foot Ø 39​ M8 / L 41 34 54
Get quote 2 Adjustable Foot Ø 39​ M8 / L 65 34 68
Get quote 2 Adjustable Foot Ø 39​ M10 / L 65 35 75

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
