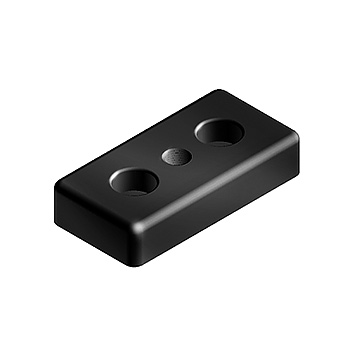

Base Plate
For retaining knuckle feet, rollers, hooks or similar components.
Screws to the face end of profiles.
Material: Die-cast zinc with a black powder coat.
Recommended screws:
D5.5 = galvanised M5 × 30 screw (DIN912)
D7 = galvanised M6 × 30 screw (DIN912)
Read more
Screws to the face end of profiles.
Material: Die-cast zinc with a black powder coat.
Recommended screws:
D5.5 = galvanised M5 × 30 screw (DIN912)
D7 = galvanised M6 × 30 screw (DIN912)
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Thread | D | B x L | L1 | L2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | M10 | 7 (M6) | 30 × 60 | 30 | - | 12 | ||
|
|
|
2 | M12 | 7 (M6) | 30 × 60 | 30 | - | 12 | ||
|
|
|
2 | M16 | 7 (M6) | 30 × 60 | 20 | - | 12 | ||
|
|
|
2 | M10 | 5.5 (M5) | 40 × 40 (slot 5) | 20 | - | 12 | ||
|
|
|
2 | M12 | 5.5 (M5) | 40 × 40 (slot 5) | 20 | - | 12 | ||
|
|
|
2 | M16 | 5.5 (M5) | 40 × 40 (slot 5) | 20 | - | 12 | ||
|
|
|
2 | M10 | 7 (M6) | 60 × 60 | 30 | 30 | 12 | ||
|
|
|
2 | M12 | 7 (M6) | 60 × 60 | 30 | 30 | 12 | ||
|
|
|
2 | M16 | 7 (M6) | 60 × 60 | 30 | 30 | 12 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
