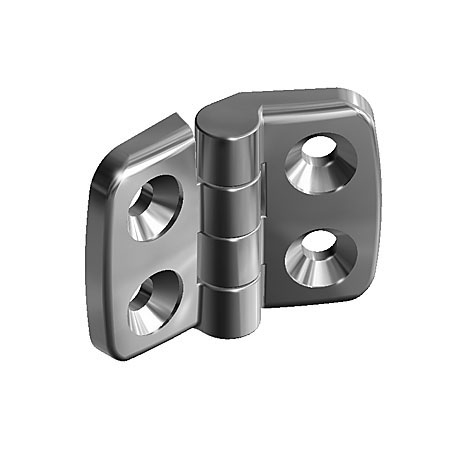

Combination Hinge of Stainless Steel

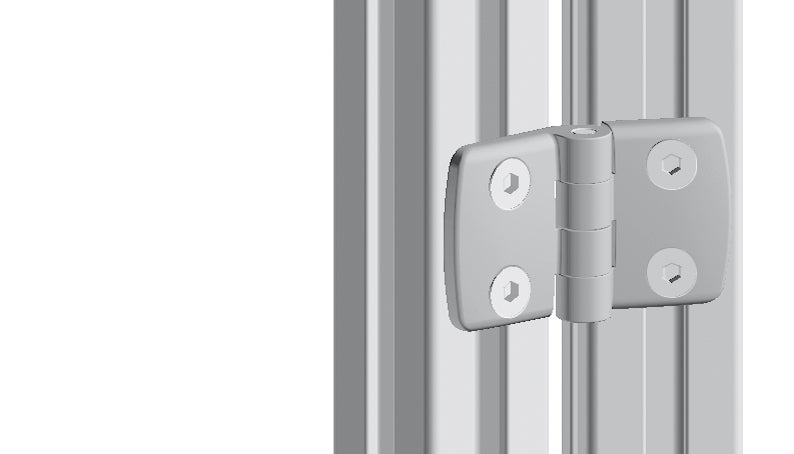

To hinge panels or aluminium profiles.
Material: Wing: Stainless steel SS316, Axle: Stainless steel SS430 F
On site mount: From the front, using M4 countersunk screws
Read more
Material: Wing: Stainless steel SS316, Axle: Stainless steel SS430 F
On site mount: From the front, using M4 countersunk screws
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | System | Weight (g) | FAmax (N) | FRmax (N) | A1/A2 | B1/B2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Combination Hinge system 20, stainless steel | 20 - Slot 5 | 138 | 450 | 700 | 11.5/11.5 | 19/19 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
