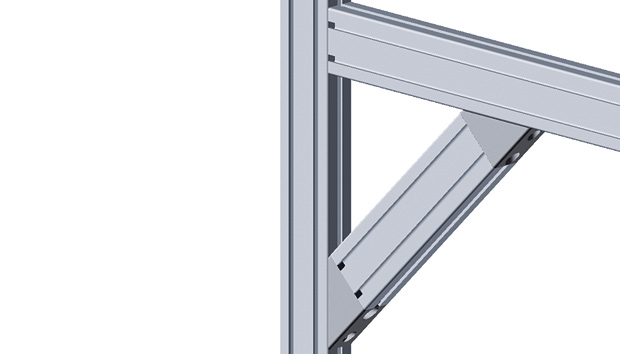

Angle Joint
Easily links two aluminium profiles at a 45° angle using a M8 screw.
Note: To install the ESD-ready brackets, use a notched slot nut in order to make a conductive link.
Read more
Note: To install the ESD-ready brackets, use a notched slot nut in order to make a conductive link.
Product Information
System: 20 - Slot 5
Type: Angles Brackets and Corners; Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Material | ESD | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Angle joint 20 45° | 20 - Slot 5 | Uncoated die-cast zinc | Yes | ||||
|
|
|
2 | Angle joint 20 45° | 20 - Slot 5 | Aluminium coloured die-cast zinc | - | ||||
|
|
|
2 | Angle joint 40/20 45° | 20 - Slot 5 | Uncoated die-cast zinc | Yes | ||||
|
|
|
2 | Angle joint 40/20 45° | 20 - Slot 5 | Aluminium coloured die-cast zinc | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
