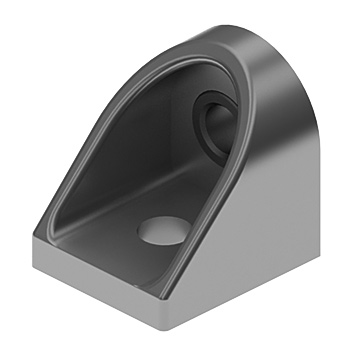

Articulated Brackets
Links two aluminium profiles at various angles.
The bearing bush ensures unrestricted rotation even when mounted.
Material: Die-cast zinc
Note: To install the ESD-ready brackets, use a notched slot nut in order to make a conductive link.
Read more
The bearing bush ensures unrestricted rotation even when mounted.
Material: Die-cast zinc
Note: To install the ESD-ready brackets, use a notched slot nut in order to make a conductive link.
Product Information
System: 30 - Slot 6; 20 - Slot 5
Type: Angles Brackets and Corners; Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | ESD | F (N) | Drill hole | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Articulated bracket 20, aluminium coloured with M5 slot 5 slot nut, 1× M5 × 8 screw (ISO7380), 1× M5 × 10 flanged fillister head screw, 1× bearing bush | - | - | - | ||||
|
|
|
2 | Articulated bracket 30, uncoated | Yes | 800 | for M6 screw | ||||
|
|
|
2 | Articulated bracket 30, aluminium coloured | - | 800 | for M6 screw |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
