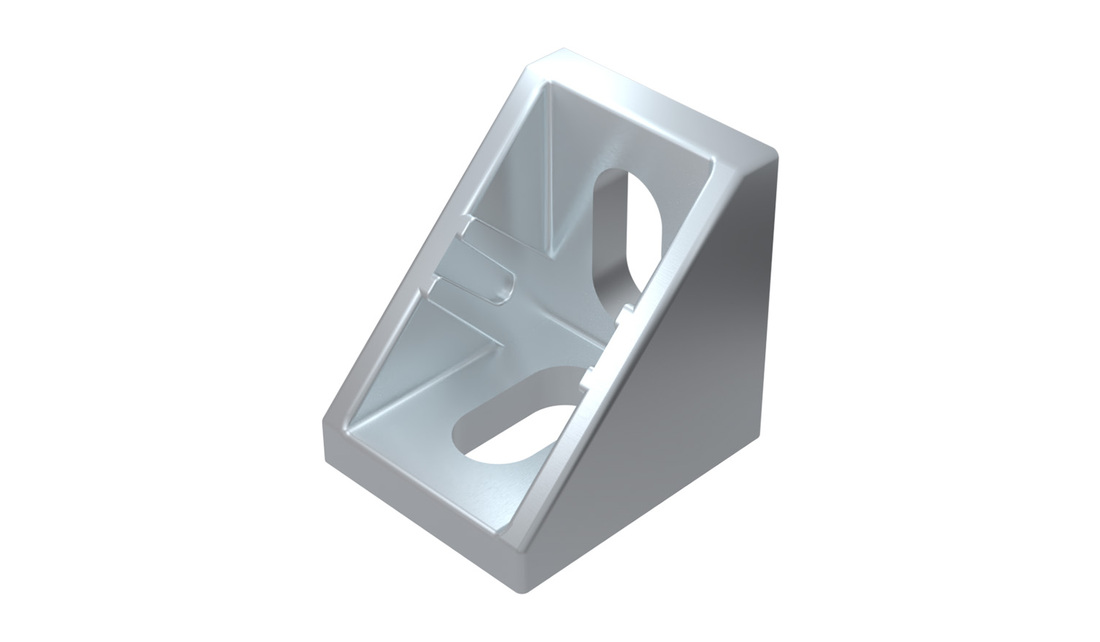

Bracket 20 × 20
Material: Bracket: Die-cast zinc, uncoated and silver powder coated.

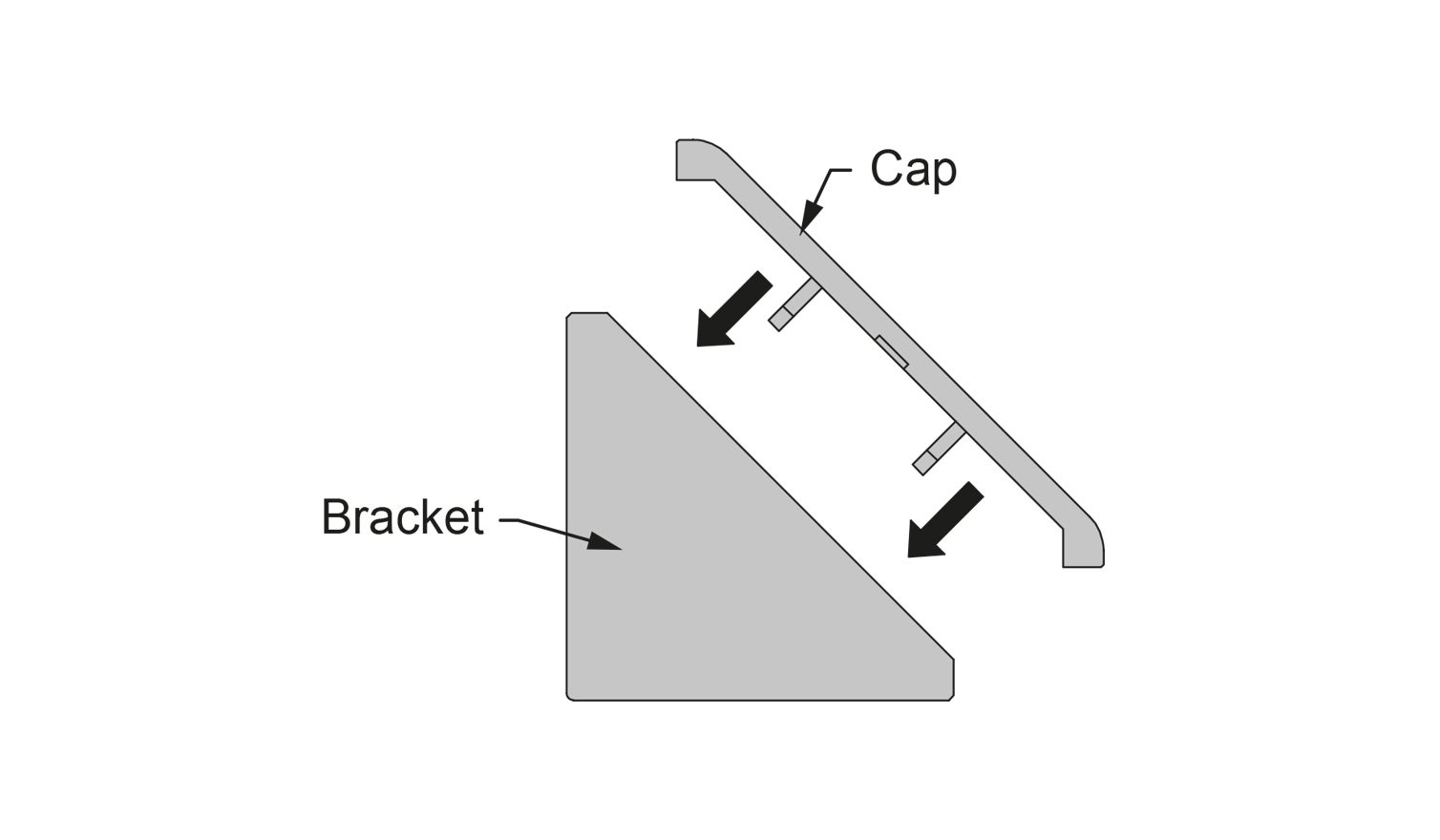

Cap: Black plastic (PA)
Mounting kit: Galvanised steel
Mounting material:
2× M5 slot 5 slot nuts with step
2× M5 × 8 screw (DIN 6912)
Read more
Cap: Black plastic (PA)
Mounting kit: Galvanised steel
Mounting material:
2× M5 slot 5 slot nuts with step
2× M5 × 8 screw (DIN 6912)
Product Information
System: 20 - Slot 5
Type: Angles Brackets and Corners; Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | ESD | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Bracket 20 × 20 | 20 - Slot 5 | - | ||||
|
|
|
1 | Bracket 20 × 20 with mounting material and ABDK | 20 - Slot 5 | Yes | ||||
|
|
|
2 | Bracket 20 × 20 silver powder coated with mounting material and ABDK | 20 - Slot 5 | - | ||||
|
|
|
2 | Cap 20 × 20 | 20 - Slot 5 | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
