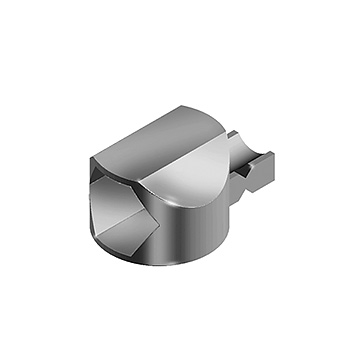

Universal Connectors
Links two aluminium profiles. Supplied with slot nut and screw.
Material: Galvanised die-cast zinc
Dummy plug material: PVC, black
Read more
Material: Galvanised die-cast zinc
Dummy plug material: PVC, black
Product Information
System: 30 - Slot 6; 20 - Slot 5
Type: Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | A | D | H | Fmax (N) | Mmax (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Set of universal connectors with guide lug and 4 mm hole; M4 slot nut and cheese head screw included | 20 - Slot 5 | 5.4 | 11.8 | 8.5 | 400 | 12 | ||||
|
|
|
1 | Set of universal connectors with guide lug and 6 mm hole; M6 slot nut and cheese head screw included | 30 - Slot 6 | 9.3 | 15.7 | 12.5 | 1250 | 35 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
