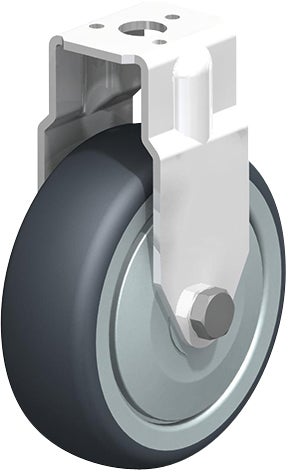

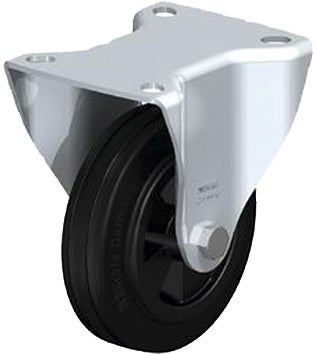

Castor with Fitted Flange
Sturdy castors with fitted flange.
Run very smoothly and are a particularly good choice for workshops.
Sold as lockable steering castor and fixed castor.

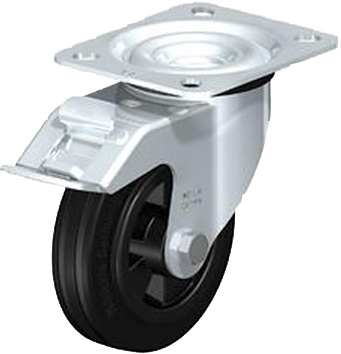

Lockable steering castor: locks to prevent the wheel from rolling and turning
Material: Wheel: Solid rubber; rim: polypropylene;
Housing: Galvanised steel sheet; transparent chromate coating
Read more
Run very smoothly and are a particularly good choice for workshops.
Sold as lockable steering castor and fixed castor.
Lockable steering castor: locks to prevent the wheel from rolling and turning
Material: Wheel: Solid rubber; rim: polypropylene;
Housing: Galvanised steel sheet; transparent chromate coating
Product Information
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
Type: Castors
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue

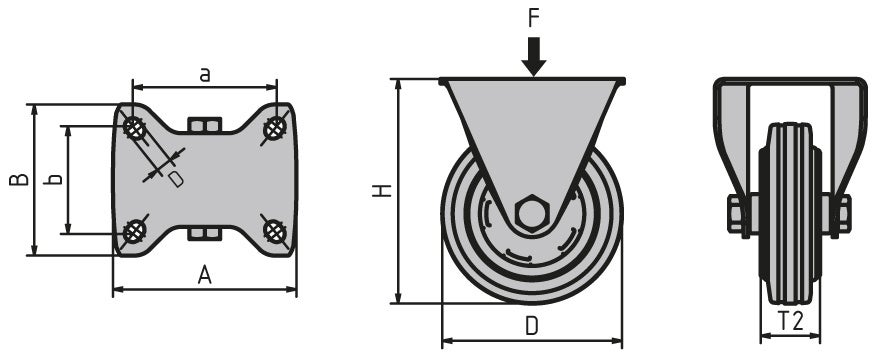

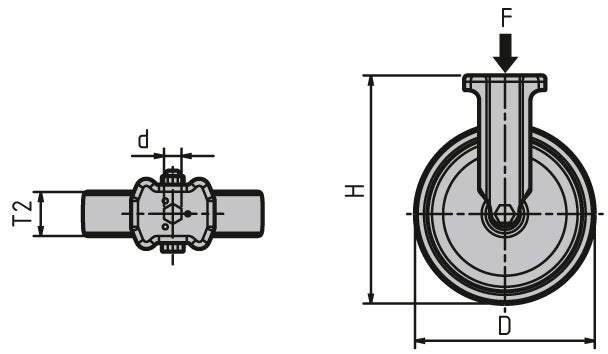

| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | A | B | D | H | ESD | b | d | F (N) | a | T2 | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Steering castor | 100 | 85 | 100 | 125 | - | 60 | 9 | 700 | 80 | 30 | 36 | ||||
|
|
|
2 | Steering castor | 100 | 85 | 125 | 150 | Yes | 60 | 9 | 1000 | 80 | 37.5 | 40 | ||||
|
|
|
2 | Fixed castor | - | - | 75 | 98 | - | - | 11 | 750 | - | 25 | - | ||||
|
|
|
2 | Fixed castor | - | - | 75 | 98 | - | - | 11 | 750 | - | 25 | - | ||||
|
|
|
2 | Fixed castor | 100 | 85 | 100 | 125 | - | 60 | 9 | 700 | 80 | 30 | - | ||||
|
|
|
2 | Fixed castor | 100 | 85 | 125 | 150 | - | 60 | 9 | 1000 | 80 | 37.5 | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
