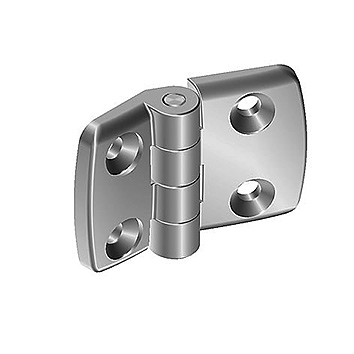

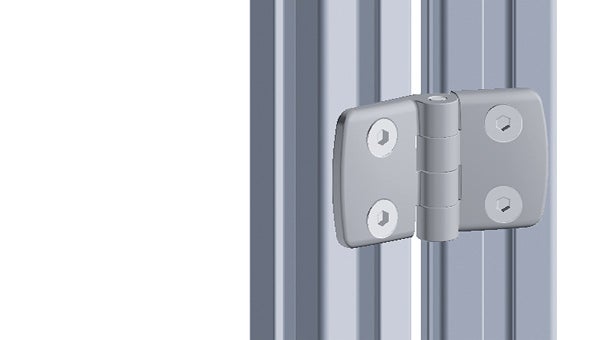

Combination Hinge of Die-Cast Aluminium
For surface elements and aluminium profiles
Material: Wing: Die-cast aluminium; pin: Stainless steel
On-site mount: by M6 × 12 or M6 × 16 countersunk screws and slot nuts at the front
Mounting instruction: ESD-ready only if using notched slot nuts.
Read more
Material: Wing: Die-cast aluminium; pin: Stainless steel
On-site mount: by M6 × 12 or M6 × 16 countersunk screws and slot nuts at the front
Mounting instruction: ESD-ready only if using notched slot nuts.
Product Information
System: 30 - Slot 6
Type: Hinges
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | B | FAmax (N) | FRmax (N) | A1/A2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Combination aluminium hinge 30.30 | 30 - Slot 6 | 59 | 225 | 325 | 17.5 | ||||
|
|
|
2 | Combination aluminium hinge 60.60 | 30 - Slot 6 | 115 | 100 | 400 | 32.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
