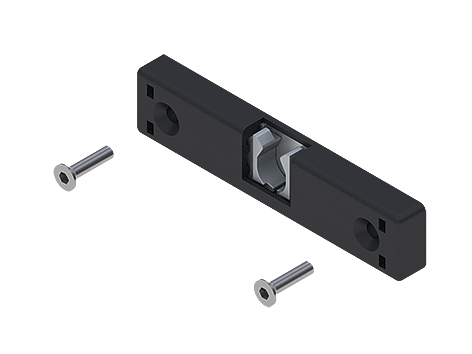

Door Latch

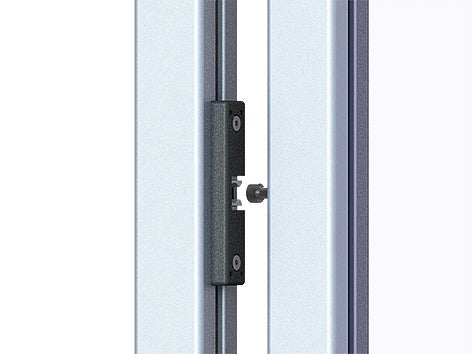

Low-profile door latch for use in the gap of swing doors. Its low height allows you to narrow down the door gap to 12 mm. The door latch snaps onto the head of a M6 cheese head screw (DIN912) which screws into a slot nut and, together with the slot nut, into the bottom of the opposite slot.
Match slots 6.
Material: Door latch; Die-cast zinc
Cover plate: Black plastic (PA)
Read more
Match slots 6.
Material: Door latch; Die-cast zinc
Cover plate: Black plastic (PA)
Product Information
System: 30 - Slot 6; 40 - Slot 8
Type: Door Latches & Interlocks
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | |
|---|---|---|---|---|---|---|---|
|
|
|
2 | Door latch and cover plate |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
