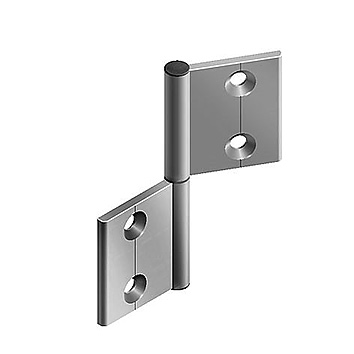

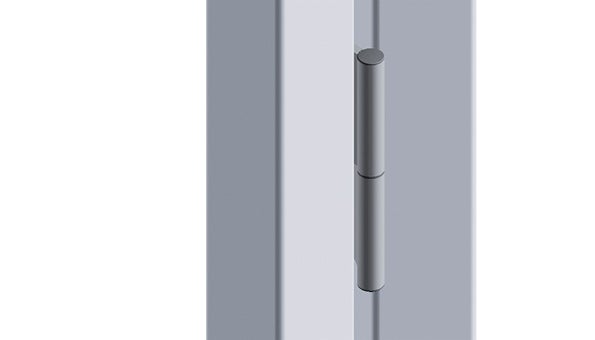

Inside Hinge Element
For surface elements and aluminium profiles.
Lets you create your own combination of inside hinges.
To build a complete hinge: 2 x wing; 1 x pin, 2 x cap
Material: Wing = Anodised aluminium; Pin = Stainless steel
On-site mount: by M6 × 10 – M6 × 16 countersunk screw, slot 6 M6.
Mounting instruction: ESD-ready only if using notched slot nuts.
Read more
Lets you create your own combination of inside hinges.
To build a complete hinge: 2 x wing; 1 x pin, 2 x cap
Material: Wing = Anodised aluminium; Pin = Stainless steel
On-site mount: by M6 × 10 – M6 × 16 countersunk screw, slot 6 M6.
Mounting instruction: ESD-ready only if using notched slot nuts.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | Material | A | B | C | ESD | FAmax (N) | FRmax (N) | Wing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Internal Hinge Set, Slot 5 | Anodised aluminium | 14.5 | 22 | 5.3 | Yes | 150 | 100 | 20 | ||
|
|
|
2 | Internal Hinge Set, Slot 6 | Anodised aluminium | 19.5 | 32 | 6.4 | Yes | 150 | 100 | 30 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
