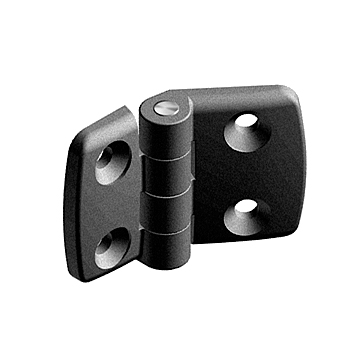

Plastic Combination Hinge, No Unhinging
For surface elements and aluminium profiles.
Material: Wing = Plastic (PA), fibreglass-reinforced.
Pin = Stainless steel

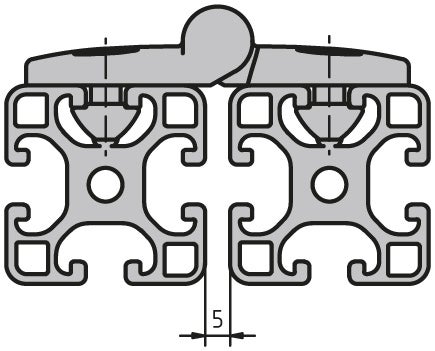

On-site mount: M6 × 12 or M6 × 16 countersunk screw and slot nuts at the front
Read more
Material: Wing = Plastic (PA), fibreglass-reinforced.
Pin = Stainless steel
On-site mount: M6 × 12 or M6 × 16 countersunk screw and slot nuts at the front
Product Information
System: 30 - Slot 6
Type: Hinges
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | FAmax (N) | FRmax (N) | A1/A2 | B1/B2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Plastic combination hinge 30 × 30 | 30 - Slot 6 | 450 | 700 | 17.5/17.5 | 29.5 | ||||
|
|
|
2 | Plastic combination hinge 30 × 40 | 30 - Slot 6 | 450 | 750 | 17.5/22.5 | 29.5/38.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
