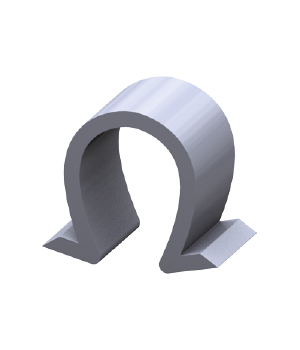

Omega Clamp
Application:

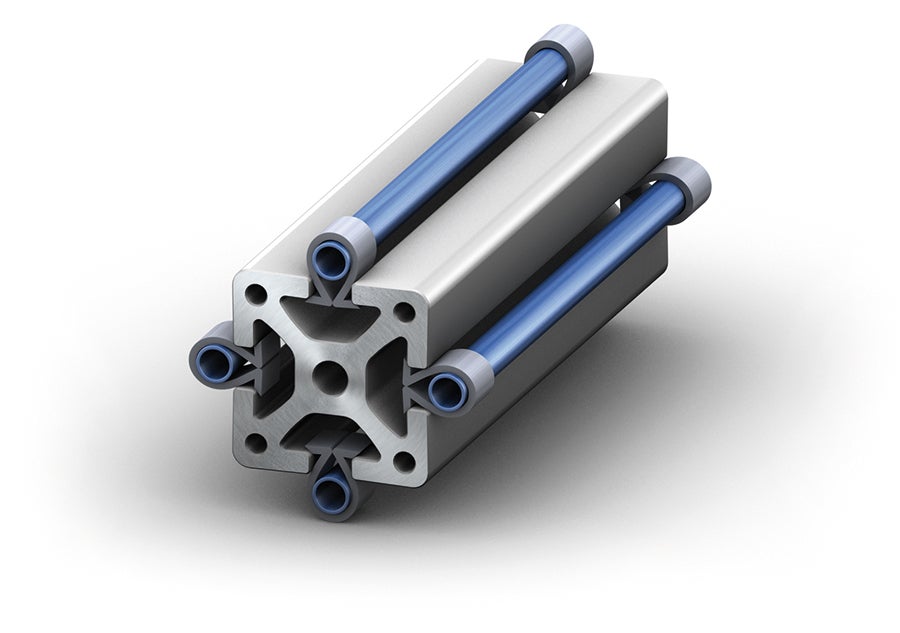

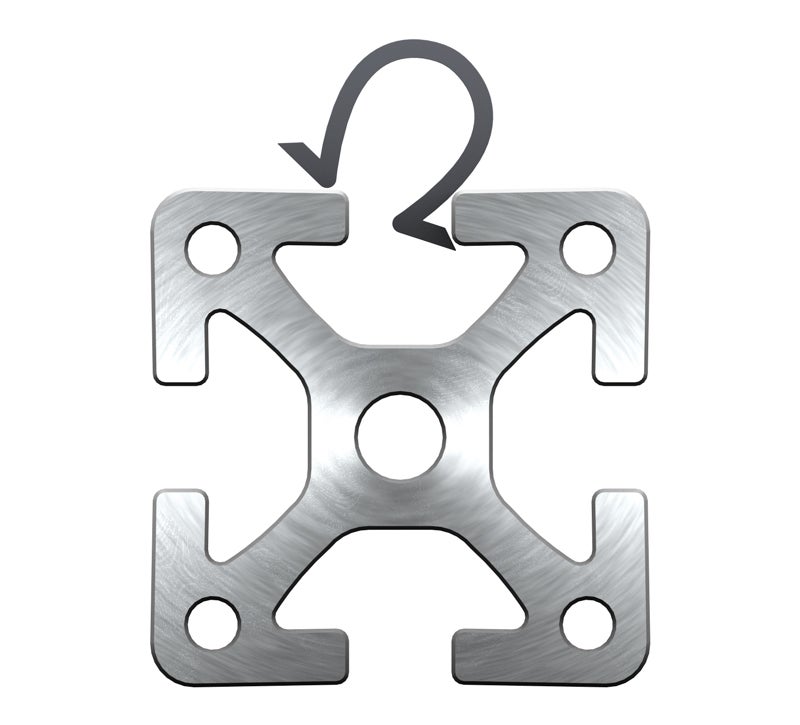

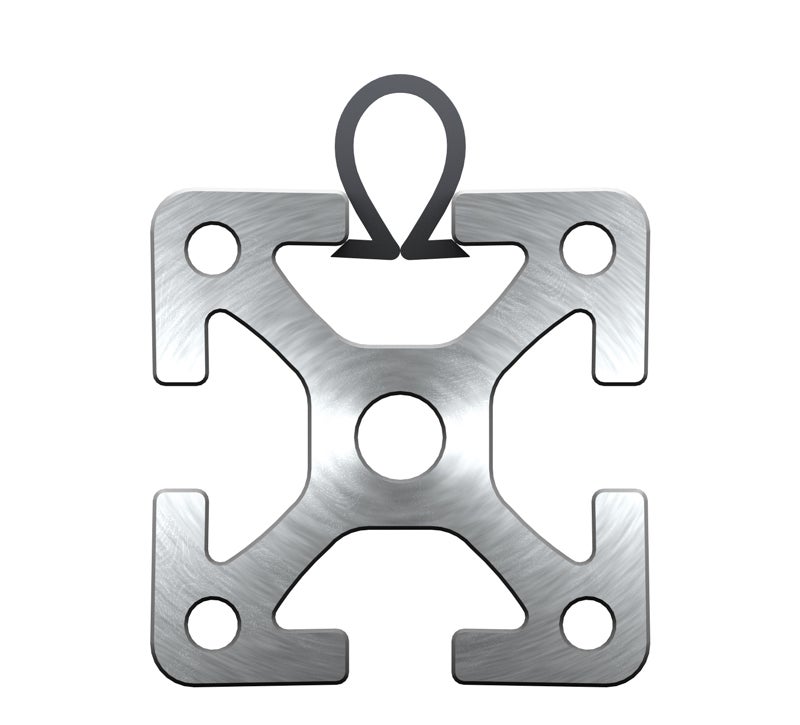

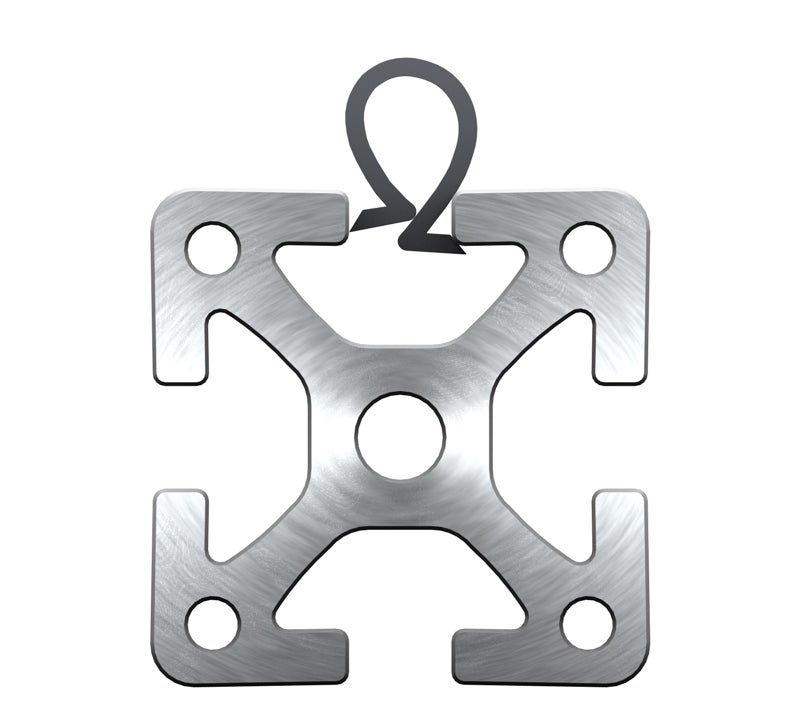

The clamp is clipped into the t-slot. Using the clamp, pneumatic tubes, cable ducts or control lines can be attached to profiles of series 30 and 40.
Omega are used to clamp conduits and compressed air lines etc. to any type of profile section that uses the M8 t-slot. If they are no longer needed, the clamps can be removed easily.
Read more
The clamp is clipped into the t-slot. Using the clamp, pneumatic tubes, cable ducts or control lines can be attached to profiles of series 30 and 40.
Omega are used to clamp conduits and compressed air lines etc. to any type of profile section that uses the M8 t-slot. If they are no longer needed, the clamps can be removed easily.
Product Information

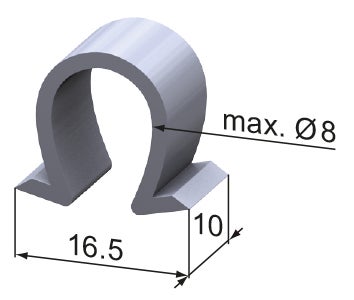

Material: PP, grey
System: 40 - Slot 8
Type: System Gliders and Rollers
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | System | Weight (g) |
|---|---|---|---|---|---|---|---|
|
|
|
2 | Omega Clamp, Type A | 40 - Slot 8 | 0.55 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
