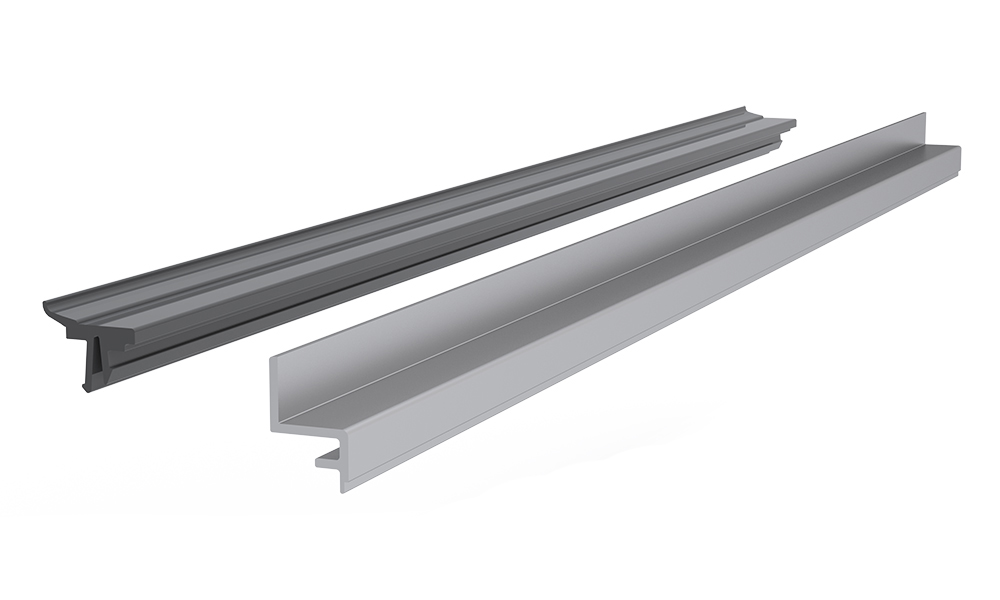

Panel Clamping Strip
For fitting plates into closed frames later.

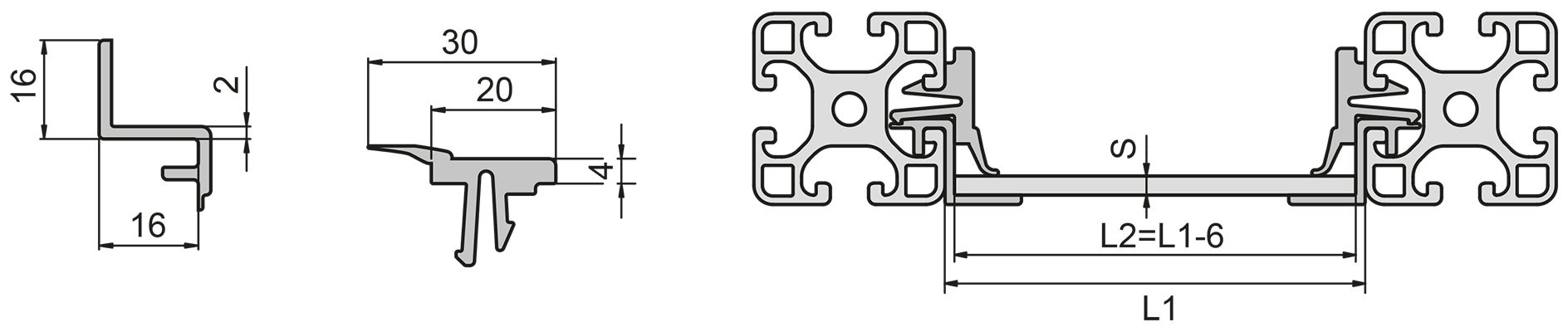

In order to improve the appearance, the mounted plates are more or less flush with the outer edge of the base frame. No need to remove existing constructions. The plate rests on an aluminium strip placed in the profile slot. An elastic plastic strip is used to fasten the plate afterwards.
Read more
In order to improve the appearance, the mounted plates are more or less flush with the outer edge of the base frame. No need to remove existing constructions. The plate rests on an aluminium strip placed in the profile slot. An elastic plastic strip is used to fasten the plate afterwards.
Product Information
System: 40 - Slot 8
Type: Sealing, Coverstrips & Rubbers
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Material | Length | S | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Panel clamping strip 8 Al | 40 - Slot 8 | Aluminium | 3000 | 2-4 | ||||
|
|
|
1 | Panel clamping strip 8 | 40 - Slot 8 | Grey PP/TPE, similar to RAL7042 | 3000 | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
