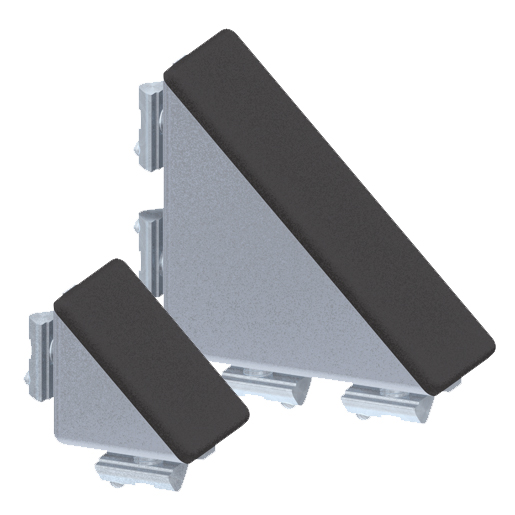

Corner Bracket Zn 40 Set 45°
Application:
For 45° angled fixing of profiles.
Assembly:
Thread M8 in the end of the profile.
To secure access for the opposite screw, drill/mill a Ø14 mm, 7 mm deep, hole in middle of slot in edge of profile.
Mount the corner bracket to the end of the profile with the supplied M8x16 screw.
Mount to the other profile with MC6S M8x30 (not included) and T-nut M8.
Supply:
• Corner Bracket Zn
• Profile Cap Corner Zn
• Button head screws M8x16
• T-Nuts M8/ball-type, push-in
• Security washers D=8mm
Read more
For 45° angled fixing of profiles.
Assembly:
Thread M8 in the end of the profile.
To secure access for the opposite screw, drill/mill a Ø14 mm, 7 mm deep, hole in middle of slot in edge of profile.
Mount the corner bracket to the end of the profile with the supplied M8x16 screw.
Mount to the other profile with MC6S M8x30 (not included) and T-nut M8.
Supply:
• Corner Bracket Zn
• Profile Cap Corner Zn
• Button head screws M8x16
• T-Nuts M8/ball-type, push-in
• Security washers D=8mm
Product Information
Material: GDZn (zinc diecasting), natural
System: 40 - Slot 8
Type: Angles Brackets and Corners; Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Weight (g) | Remark | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Set Corner Bracket 40 x 40, complete | 40 - Slot 8 | 135 | Complete set | ||||
|
|
|
1 | Set Corner Bracket 40 x 80, complete | 40 - Slot 8 | 388 | Complete set |
