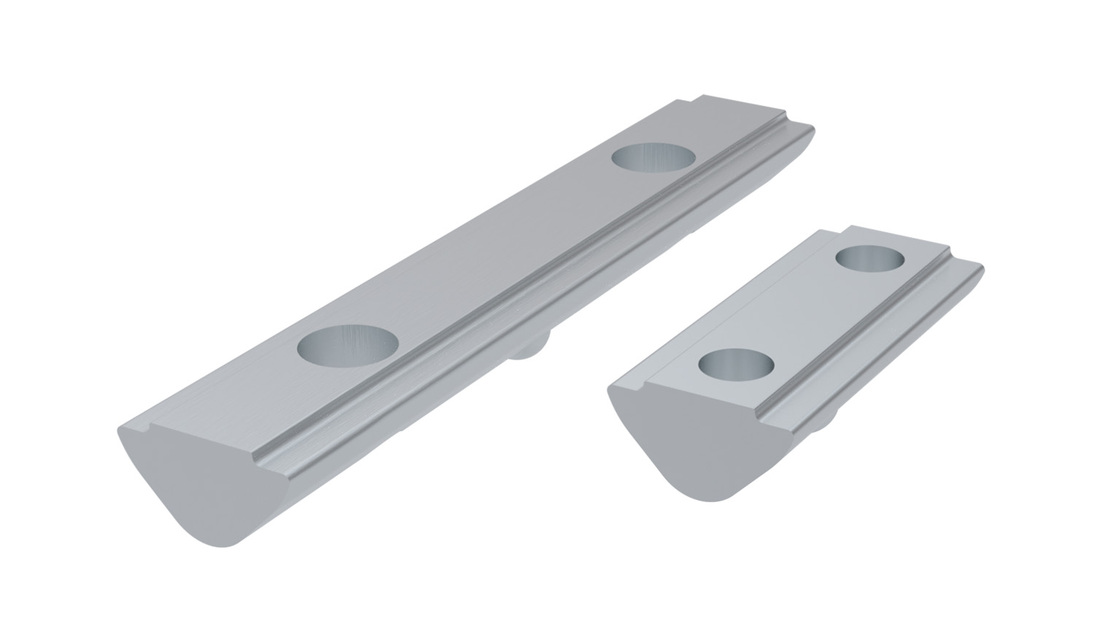

Double T-Nuts 40/20
Application:
T-nut for swiveling into the groove. Fits into the t-slot at any point. For fixing of foot plates and any other accessories that require a fixing pitch of 40 mm x M8 (20 mm x M6 respectively) thread. Raised area fits into t-slot to stop twisting.
SV2202V: bore hole distance: 40 mm, thread: M8
SV2210V: bore hole distance: 20 mm, thread: M6
Read more
T-nut for swiveling into the groove. Fits into the t-slot at any point. For fixing of foot plates and any other accessories that require a fixing pitch of 40 mm x M8 (20 mm x M6 respectively) thread. Raised area fits into t-slot to stop twisting.
SV2202V: bore hole distance: 40 mm, thread: M8
SV2210V: bore hole distance: 20 mm, thread: M6
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
Type: T-nuts
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | Thread | |
|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 40 - Slot 8 | 40 M8 | ||||
|
|
|
2 | 40 - Slot 8 | 20 M6 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
