Profile Cap ø7 for Standard Fastener
Used to close drill holes in closed profiles

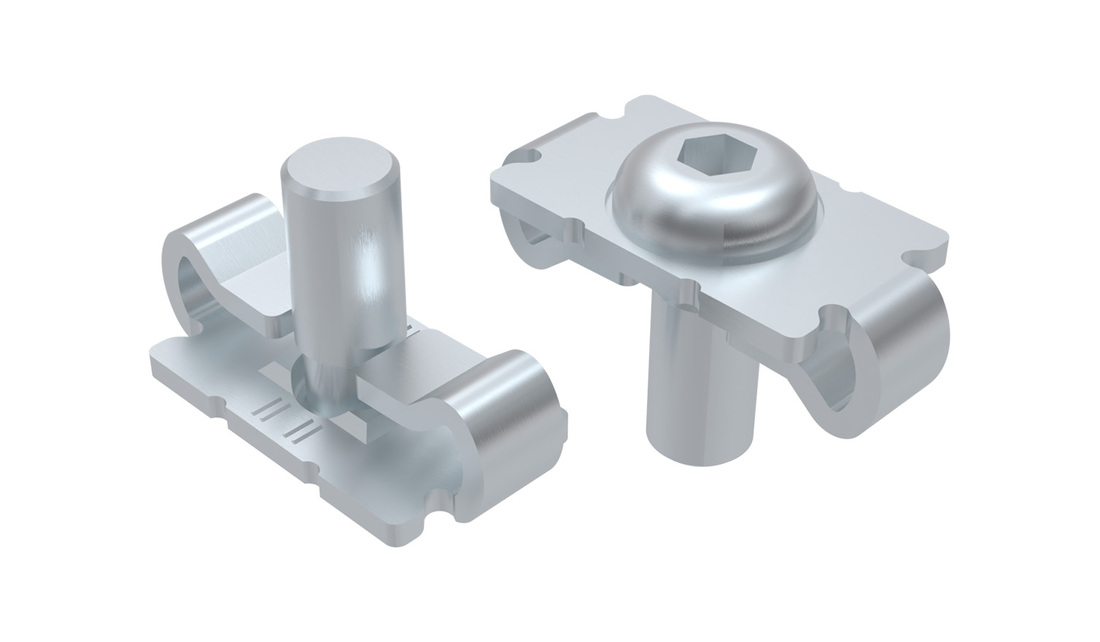

Standard Fastening Set
Application:
Simple connection that creates an anti-rotation link for two profiles.

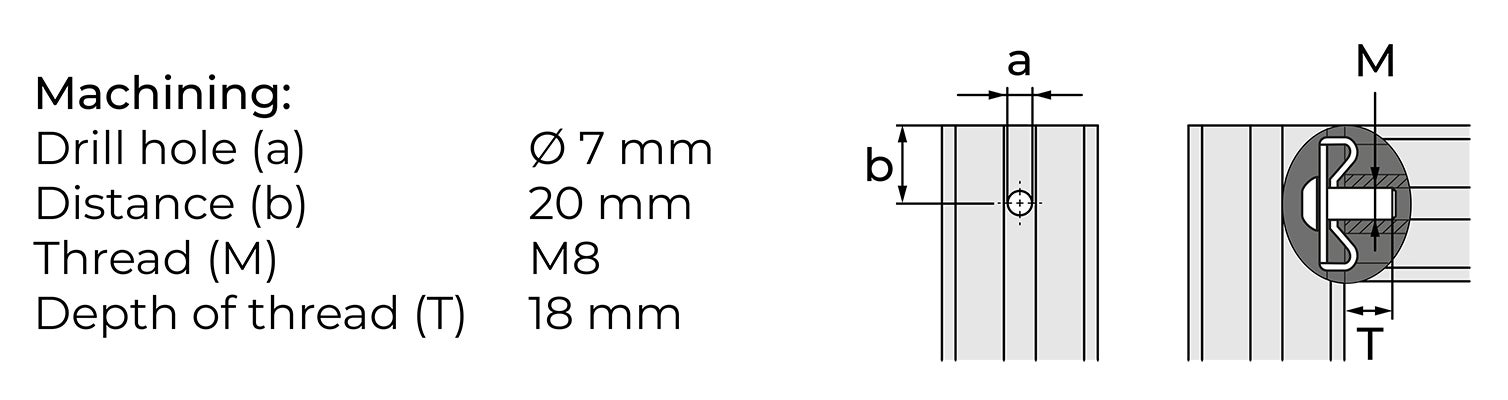

Assembly:
Drill Ø7, 20mm from the profile end, in the middle of the slot, through hole.
Thread M8 in the end of the connection profile, 18mm deep.
Supply:
Standard fastener and 1xK6S ISO7380 M8x20.
Read more
Simple connection that creates an anti-rotation link for two profiles.
Assembly:
Drill Ø7, 20mm from the profile end, in the middle of the slot, through hole.
Thread M8 in the end of the connection profile, 18mm deep.
Supply:
Standard fastener and 1xK6S ISO7380 M8x20.
Product Information
Material: Zinc plated steel
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | Torque (Nm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 40 - Slot 8 | 25 | 35 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
