SP7200N – Profile 40/40 Edge
System 40 - Slot 8 profile Edge, angled surface outwards

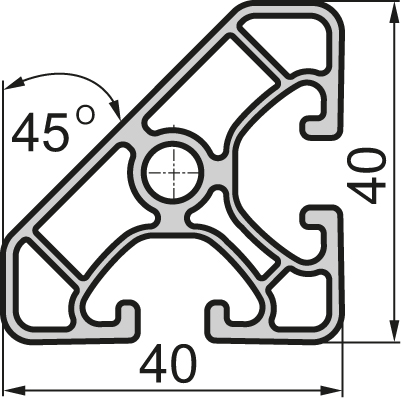

SP5670N – Profile 40x40 Edge Superlight
Product Information
System: 40 - Slot 8
Dimensions: 40x40
Length (mm): 6000
Material Quality: Superlight
Profile Type: Open
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 5.22 | 5.22 | 2.24 | 2.24 | 3.88 | 1.05 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
