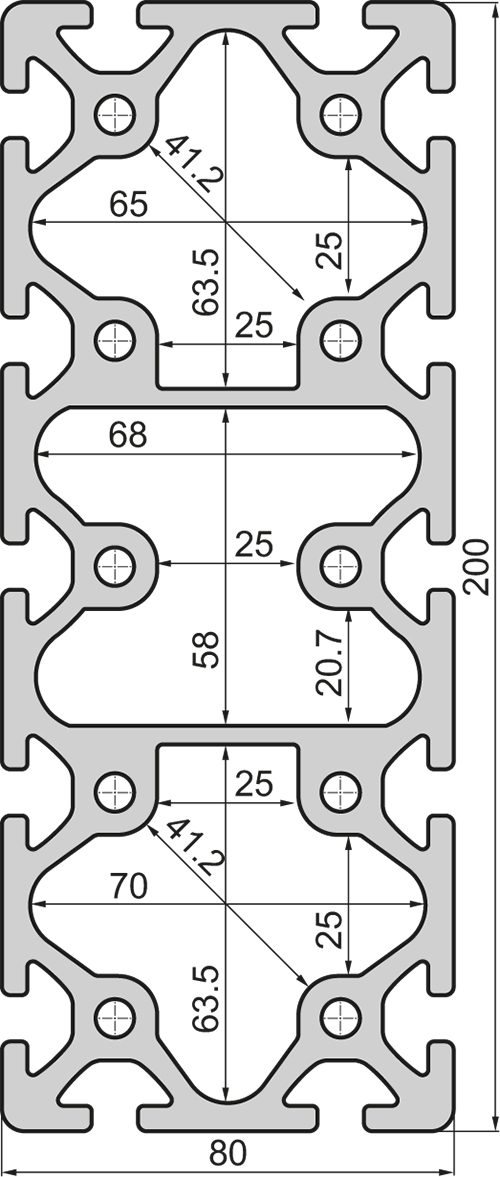

SP8600N – Profile 80x200
Product Information
System: 40 - Slot 8
Dimensions: 80x200
Length (mm): 6000
Material Quality: Strong
Profile Type: Open
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
Designation | Select all | Compare | Get quote | Lead Time * | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) |
---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 2 120.64 | 425.40 | 212.06 | 106.35 | 54.54 | 14.78 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
