CKR/CVR
Rail with constant radius or variable radius with straight sections
CCT

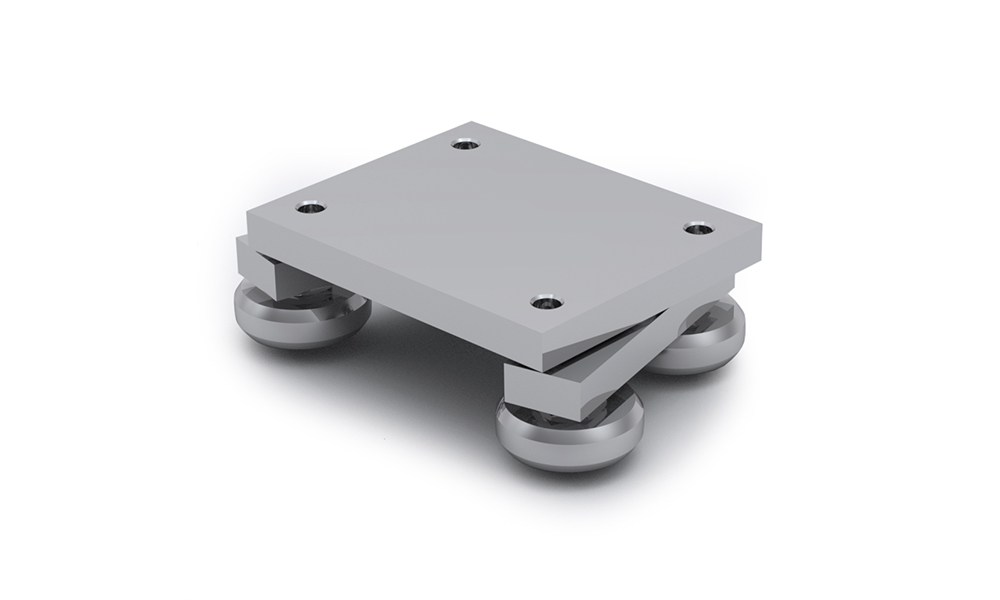

Sliders with four rollers, arranged in pairs, maintain the preload over the entire rail length. Pivoting roller mounts coupled with concentric and eccentric rollers allows for a smooth operation over complex rail layouts.
Slider in stainless steel is available as an option, contact Rollco for more information.
We customize each application according to drawing.
See document Technical Information for further details.
Dimensions in mm.
Please contact us for CAD-files.
Read more
Slider in stainless steel is available as an option, contact Rollco for more information.
We customize each application according to drawing.
See document Technical Information for further details.
Dimensions in mm.
Please contact us for CAD-files.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Weight (kg) | Load Capacity C0ax (N) | Load Capacity C0rad (N) |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.45 | 400 | 570 | ||
|
|
|
1 | 1.10 | 1130 | 1615 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-

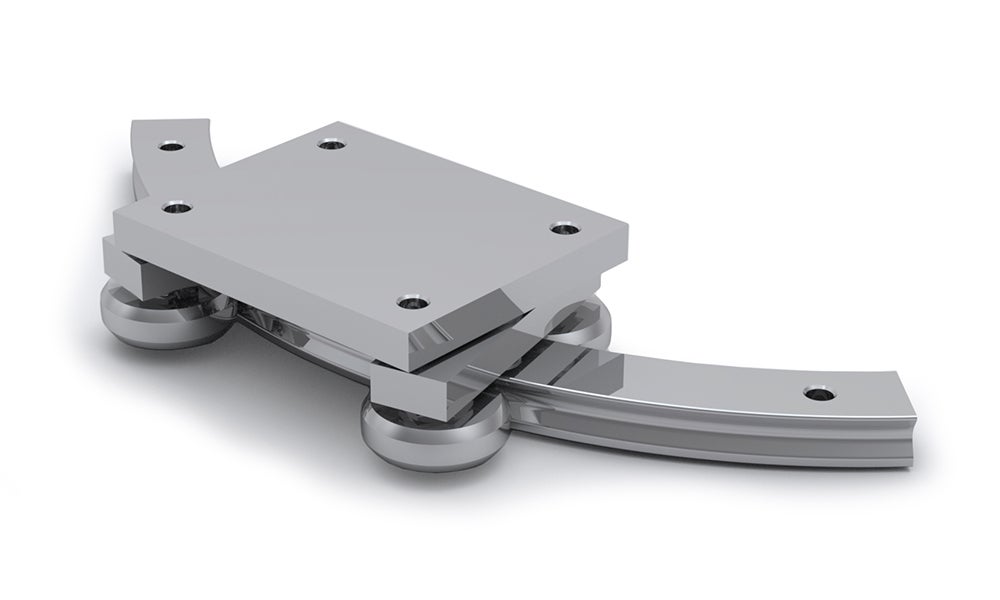

Mounted Slider & Rail
Combination of slider and rail
