Linear units

FIND THE RIGHT LINEAR UNIT

We have a varied range of linear units suitable for many different types of applications. The linear units are compact and have high precision. They are supplied with either ball screw or timing belt drive.

Ready for installation

The linear units are delivered ready for installation in a machine or system. It is easy to combine several linear units into an x-y-z movement.

Advice on design and construction

We are happy to help with advice and CAD files in the construction phase. A lot of material is available on our website, otherwise you are always welcome to contact us.

Below you will find distinctive features of our linear units

Linear unit RHL Linear unit QME

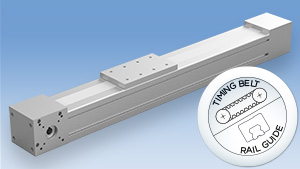

Linear unit RHL

  • Belt drive
  • Precision: low/medium
  • Normal dirt resistance in a factory/industrial environment
  • Linear guidance: linear rail guide (with balls)

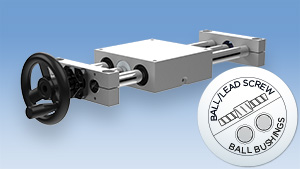

Linear unit QME

  • Ball- or lead screw drive
  • Precision: medium
  • Low-normal dirt resistance in a factory/industrial environment, bellows as an option for extended protection
  • Bellows when built into machine

  • Linear guidance: ball bushings and shafts)
Linear unit MTJ Linear unit MRJ

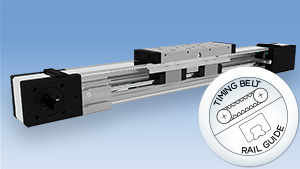

Linear unit MTJ

  • Belt drive
  • Precision: low
  • Normal-high dirt resistance in factory/industrial environment, optional stainless steel strap for extra protection
  • Linear guidance: linear rail guide (with balls)

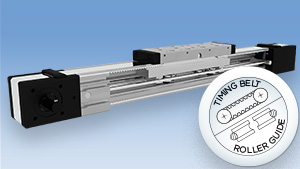

 Linear unit MRJ

  • Belt drive
  • Precision: medium
  • Normal-high dirt resistance in factory/industrial environment, optional stainless steel strap for extra protection
  • Linear guidance: linear rail guide (with rollers)
Linear unit MTV Linear unit MTJ ECO

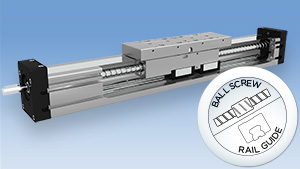

Linear unit MTV

  • Ball screw drive
  • Precision: high
  • High dirt resistance in a factory/industrial environment, reinforced with stainless steel tape for extra dust and dirt protection
  • Linear guidance: linear rail guide (with balls)
  • 2LR variant with two sliders running synchronously in opposite direction available

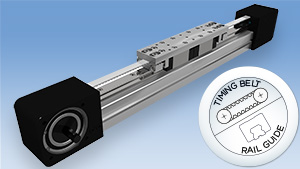

Linear unit MTJ ECO

  • Belt drive
  • Precision: low
  • Low dirt resistance
  • Linear guidance: linear rail guide (with balls)
  • Cost-effective alternative
Linear unit MTJZ Linear unit CTJ

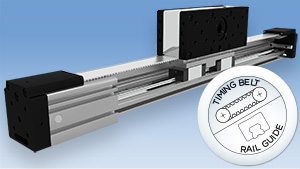

Linear unit MTJZ

  • Belt drive (z-axis)
  • Precision: low-medium
  • Normal dirt resistance in a factory/industrial environment,
  • Linear guidance: linear rail guide (with balls)

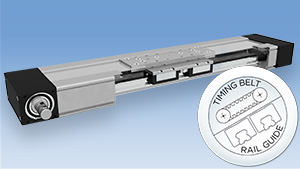

Linear unit CTJ

  • Belt drive
  • Precision: medium
  • Normal dirt resistance in a factory/industrial environment
  • Linear guidance: 2 parallel, backlash-free rail guides
Linear unit CTV. Mini linear unit MGBS

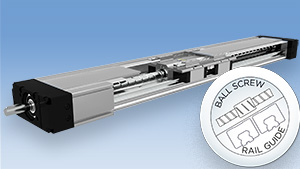

Linear unit CTV

  • Ball screw drive
  • Precision: high
  • Normal dirt resistance in a factory/industrial environment, reinforced with stainless steel tape for
    extra dust and dirt protection
  • Linear guidance: linear rail guide (with balls)

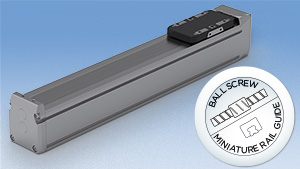

Mini linear unit MGBS

  • Ball screw drive
  • Precision: high
  • Normal dirt resistance in a factory/industrial environment
  • Linear guidance: miniature rail guide
  • Miniature format

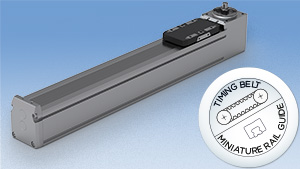

Mini linear unit MGTB

Mini linear unit MGBS

  • Belt drive
  • Precision: medium
  • Normal dirt resistance in a factory/industrial environment
  • Linear guidance: miniature rail guide
  • Miniature format


Not linear units that you are looking for? You know we have many other solutions, right? If you have special requests regarding temperature, parallelism and angle errors or curved movements read more about our other linear products read more about our other linear products here.
