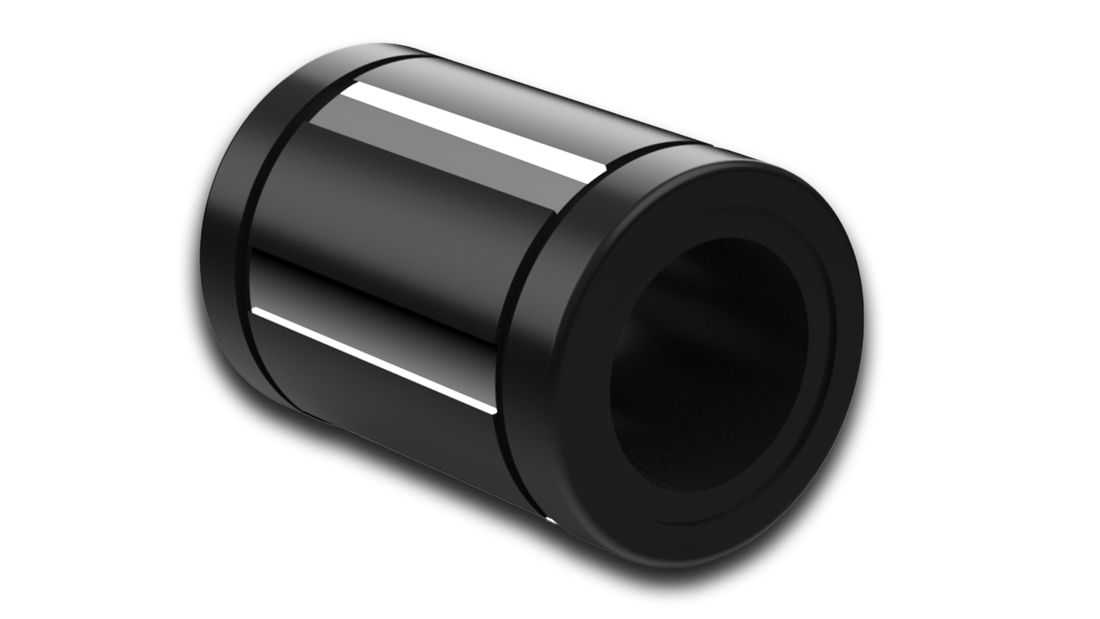

SBE

STANDARD
Dimensions in mm.
Other types available on request.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity (N) Static Load Capacity (N) Number Of Ball Rows
Get quote 1 1530 1280 5
Get quote 1 2630 1700 6
Get quote 1 3880 2810 6
Get quote 1 4810 2860 6
Get quote 1 6630 5840 6
Get quote 1 11690 8100 6

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote I D L W B
Get quote 16 26 36 1.3 24.6
Get quote 20 32 45 1.6 31.2
Get quote 25 40 58 1.85 43.7
Get quote 30 47 68 1.85 51.7
Get quote 40 62 80 2.15 60.3
Get quote 50 75 100 2.65 77.3
