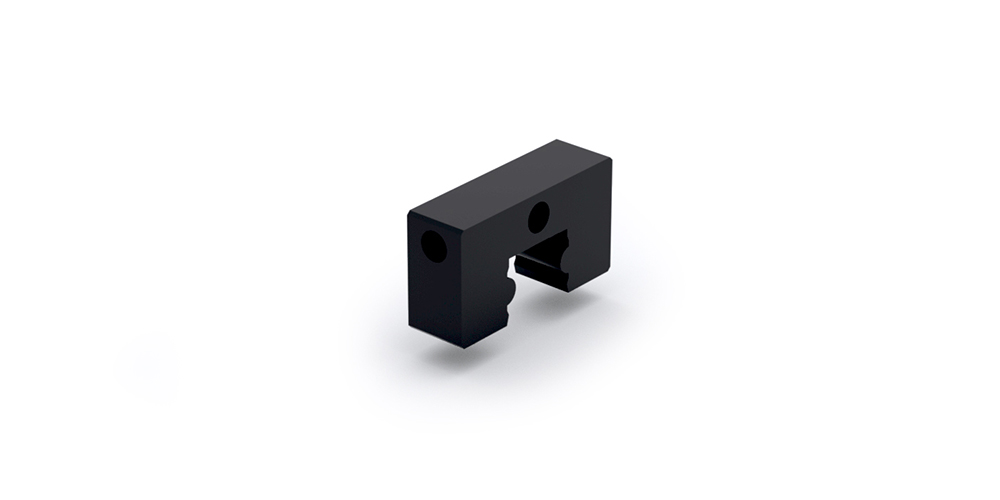

Lube Unit with Sealing Function

STOCK ITEM

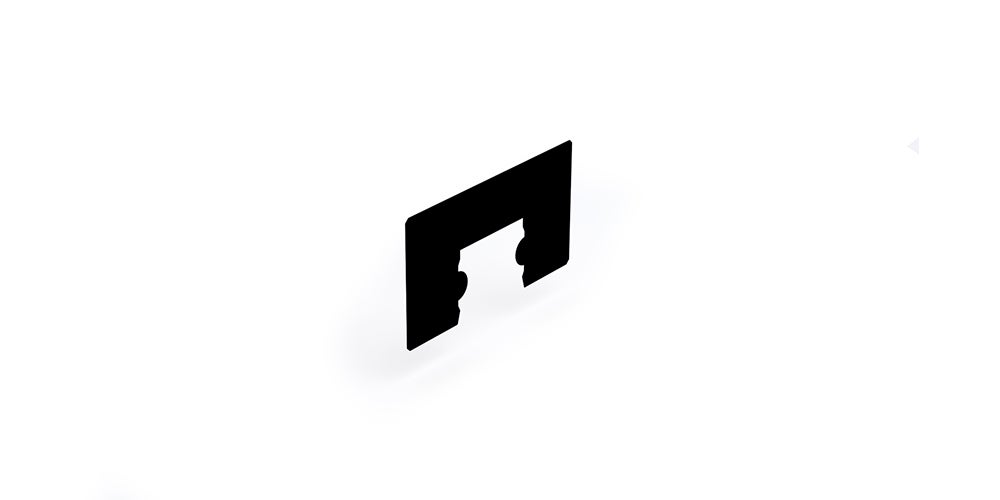

Lube units with sealing function are used in applications with higher mileage or in dirty environments. Located inside the blocks and impregnated with oil ISO VG100, they ensure a continuous lubrication and simultaneously act as front seals. Due to this a service life of 12500 km is possible, without further lubrication. After it is possible to lubricate via the lubrication oil connections or the enclosed grease nipple. Optimally is when you replace the whole unit. The lube units are simply pushed over the rail and mounted by the attached bayonet fittings at the front side of the runner block, when the existing seal unit is removed.

Dimensions in mm.
Read more

Product Information

Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * Remark Lubrication
Get quote 1 Supplied grease nipple nSN-00M3 Oil 0.65 cm3
Get quote 2 Supplied grease nipplenGN-00M6 Oil 1.35 cm3
Get quote 1 Supplied grease nipple nGN-00M6 Oil 1.7 cm3

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote H W h h2 B S T
Get quote 24 31.7 0.4 19.4 11.5 M3 4.5
Get quote 30 43.2 0.4 24.3 15.5 M6 5
Get quote 36 47.2 3.4 30 17.2 M6 7.6
