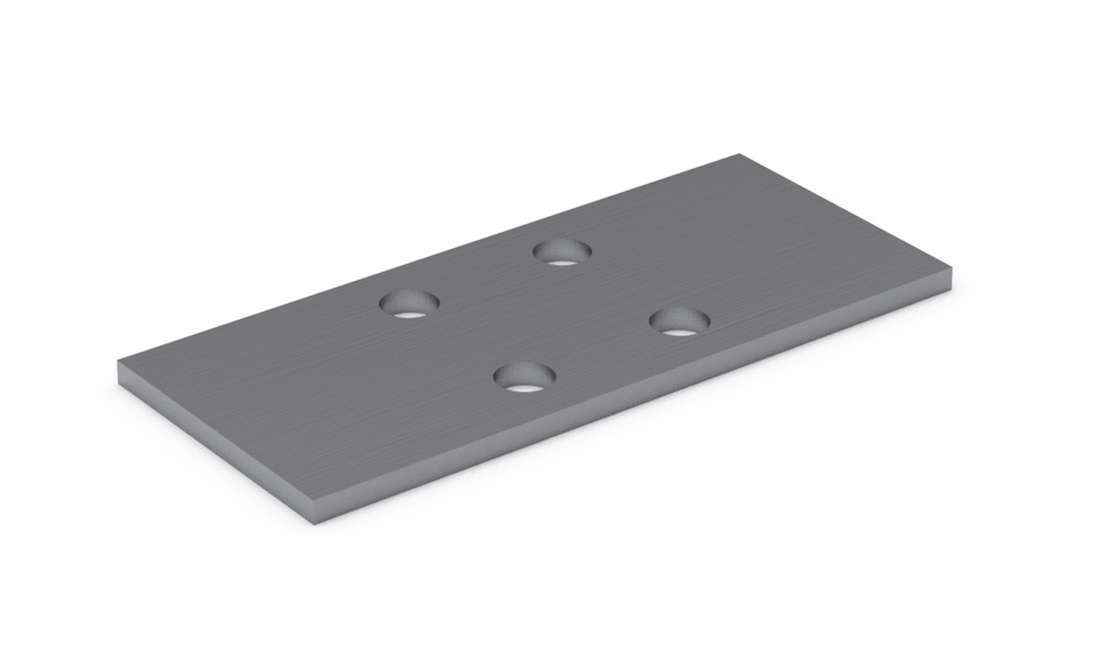

Adapter Plate for HK Clamping Element

STOCK ITEM
Because of the height difference of different rail guide blocks and to ensure the proper function of the HK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.

Dimensions in mm.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight (kg)
Get quote 1 0.033
Get quote 2 0.062
Get quote 2 0.08
Get quote 2 0.2
Get quote 2 0.39

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B S2 E1 E2 E3 h
Get quote 47 24 M4 17 17 3.5 4
Get quote 70 30 M6 20 20 5 4
Get quote 90 39 M6 22 22 8.5 3
Get quote 100 39 M8 24 24 7.5 7
Get quote 120 44 M10 26 26 9 10
