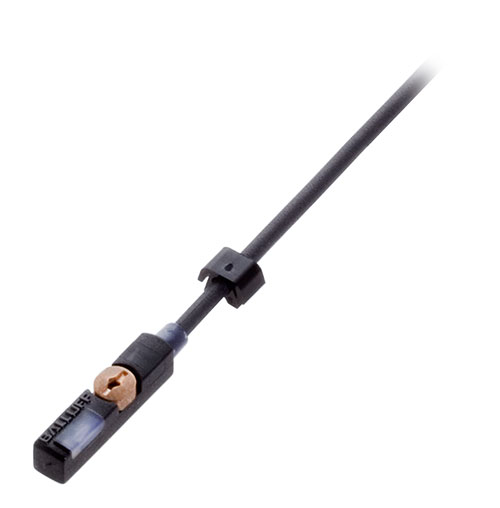

Sensor

STOCK ITEM
• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class

Dimensions in mm.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Protection Class Ambient Temperature (°C) Approval Casing material Connection Contact rating Indicators Insulation Voltage Endurance (V DC) Internal Power Consumption (mA) Max. Rating (mA) Max. Voltage Drop Static (V) Mounting Operating Frequency (Hz) Output Reproducibility (mm) Service Voltage (V DC) Short circuit protected
Get quote 1 IP 67 -25 ... +85 CE PA12 Cable PUR. 2.0 m as standard 6 W max. (30 V, 200 mA) LED: yellow output signal 75 6 200 2.5 Hex key size 2.0 mm. Max. tightening torque 0.4 Nm 5000 PNP, NO < 0,1 10 ... 30 Yes
Get quote 1 IP 67 -25 ... +85 CE PA12 Cable PUR. 2.0 m as standard 6 W max. (30 V, 200 mA) LED: yellow output signal 75 6 200 2.5 Hex key size 2.0 mm. Max. tightening torque 0.4 Nm 5000 PNP, NC < 0,1 10 ... 30 Yes

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
