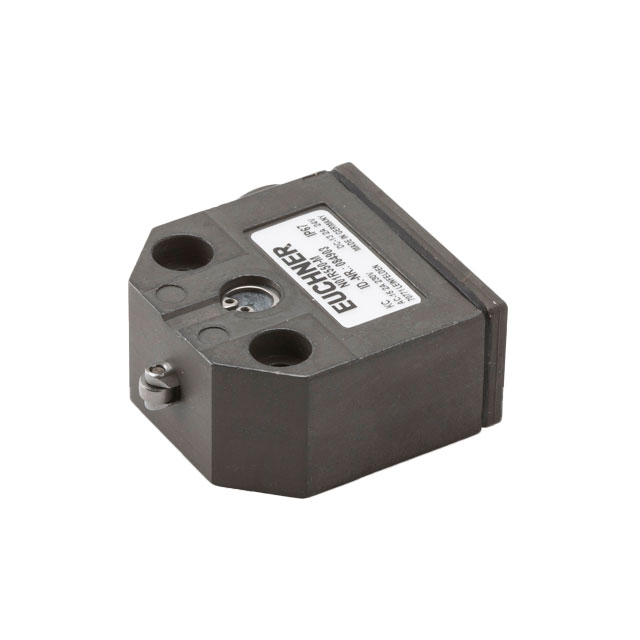

MS - Mechanical Switch

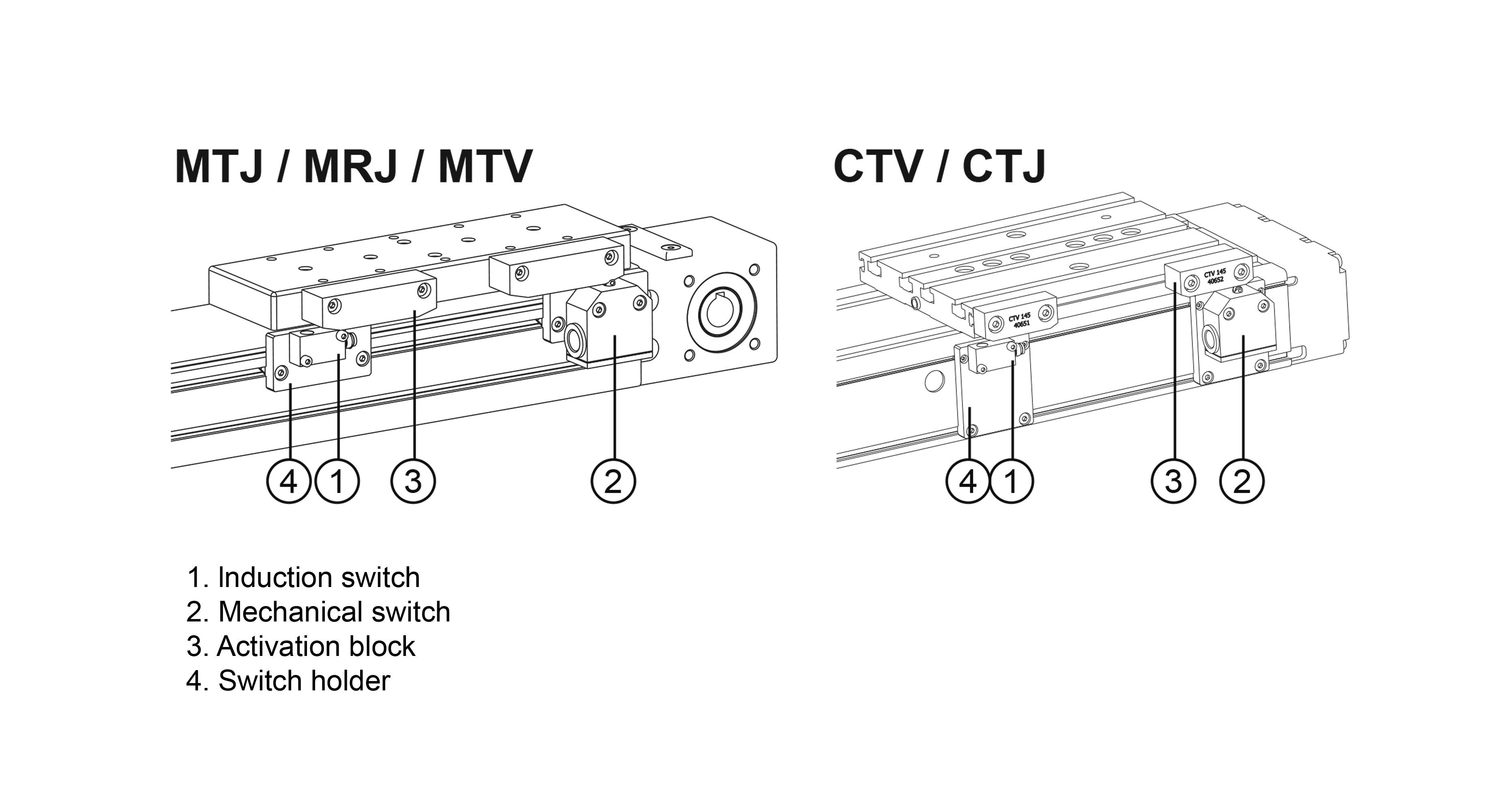

Mounting and using the induction and mechanical switch, can be done only if the CTV and CTJ series linear units are delivered with connection plates.
Contact Rollco for CAD-files.
Dimensions in mm.
Read more
Contact Rollco for CAD-files.
Dimensions in mm.
Product Information
Protection Class IEC 60529: IP67
Ambient Temperature (°C): -5 ... +80
Operating Point Accuracy (mm): ± 0.05
Approach Speed Max. (m/min): 45
Approach Speed Min. (m/min): 0.01
Switching contact: 1 changeover
Switching principle: Snap-action
Rated voltage: 250 V AC
Switching Current, min. at. (mA): 10
Switching Voltage (V DC): 24
Cable entry: M12 × 1.5
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | |
|---|---|---|---|---|---|---|---|
|
|
|
2 | MTJ/MRJ 40 | ||||
|
|
|
2 | MTJZ 40 | ||||
|
|
|
2 | MTJ/MRJ/MTV 65 MTJZ 65/80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 110 | ||||
|
|
|
2 | MTJZ 110 | ||||
|
|
|
2 | MTJ ECO 40 | ||||
|
|
|
2 | CTV/CTJ 90 | ||||
|
|
|
2 | CTV/CTJ 110 | ||||
|
|
|
2 | CTV/CTJ 145/200 | ||||
|
|
|
2 | All models | ||||
|
|
|
2 | MTJ/MRJ 40 MTJZ 40 | ||||
|
|
|
2 | MTJ/MRJ/MTV 65 MTJZ 65/80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 110 | ||||
|
|
|
2 | MTJZ 110 | ||||
|
|
|
2 | MTJ ECO 40 | ||||
|
|
|
2 | CTV/CTJ 90 | ||||
|
|
|
2 | CTV/CTJ 110 | ||||
|
|
|
2 | CTV/CTJ 145 | ||||
|
|
|
2 | CTV/CTJ 200 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
