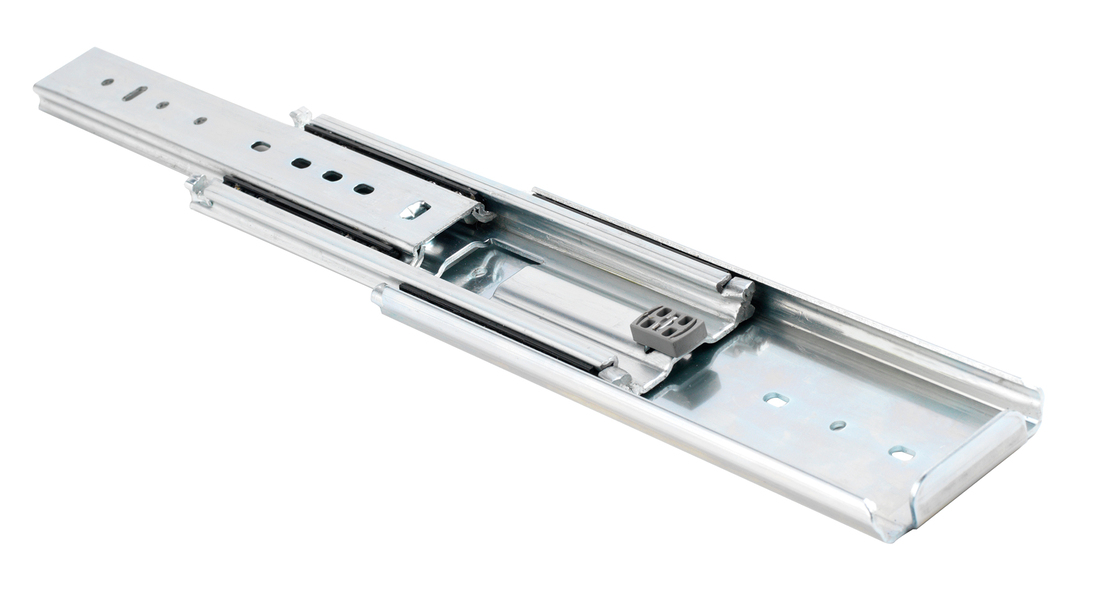

3080 - 100% Extension
All dimensions in mm.
System Load Capacity value refers to a pair of rails.
Read more
System Load Capacity value refers to a pair of rails.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 304 | 304 | 1780 | ||||
|
|
|
1 | 406 | 406 | 1780 | ||||
|
|
|
1 | 508 | 508 | 1780 | ||||
|
|
|
1 | 609 | 609 | 1690 | ||||
|
|
|
1 | 711 | 711 | 1600 | ||||
|
|
|
1 | 812 | 812 | 1510 | ||||
|
|
|
1 | 914 | 914 | 1420 | ||||
|
|
|
1 | 1016 | 1016 | 1330 | ||||
|
|
|
1 | 1117 | 1117 | 1240 | ||||
|
|
|
1 | 1219 | 1219 | 1150 | ||||
|
|
|
1 | 1320 | 1320 | 1060 | ||||
|
|
|
1 | 1422 | 1422 | 1020 | ||||
|
|
|
1 | 1524 | 1524 | 890 |
