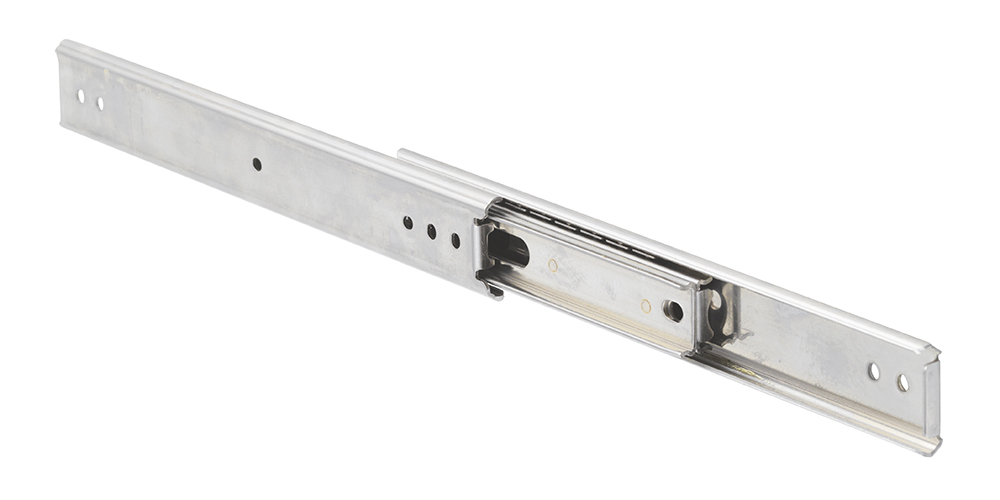

3560 - 100% Extension
All dimensions in mm.
System Load Capacity value refers to a pair of rails.
Read more
System Load Capacity value refers to a pair of rails.
Product Information
Material: Slide members and component parts - stainless SUS304. Balls - SUS304.
Extension: 100%
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 254 | 264 | 600 | ||||
|
|
|
1 | 304.8 | 314.8 | 600 | ||||
|
|
|
1 | 355.6 | 365.6 | 600 | ||||
|
|
|
1 | 406.4 | 416.4 | 600 | ||||
|
|
|
1 | 457.2 | 467.2 | 600 | ||||
|
|
|
1 | 508 | 518 | 600 | ||||
|
|
|
1 | 558.8 | 568.8 | 500 | ||||
|
|
|
1 | 609.6 | 619.6 | 450 | ||||
|
|
|
1 | 660.4 | 670.4 | 400 | ||||
|
|
|
1 | 711.2 | 721.2 | 320 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
- | - | 209.5 | 222.2 | ||||
|
|
|
- | 149.2 | 260.3 | 273.0 | ||||
|
|
|
- | 200.0 | 311.1 | 323.8 | ||||
|
|
|
- | 250.8 | 361.9 | 374.6 | ||||
|
|
|
212.7 | 301.6 | 412.7 | 425.4 | ||||
|
|
|
238.1 | 352.4 | 463.5 | 476.2 | ||||
|
|
|
263.5 | 403.2 | 514.3 | 527.0 | ||||
|
|
|
288.9 | 454.0 | 565.1 | 577.8 | ||||
|
|
|
314.3 | 504.8 | 615.9 | 628.6 | ||||
|
|
|
339.7 | 555.6 | 666.7 | 679.4 |
