LINEAR RAIL SBI

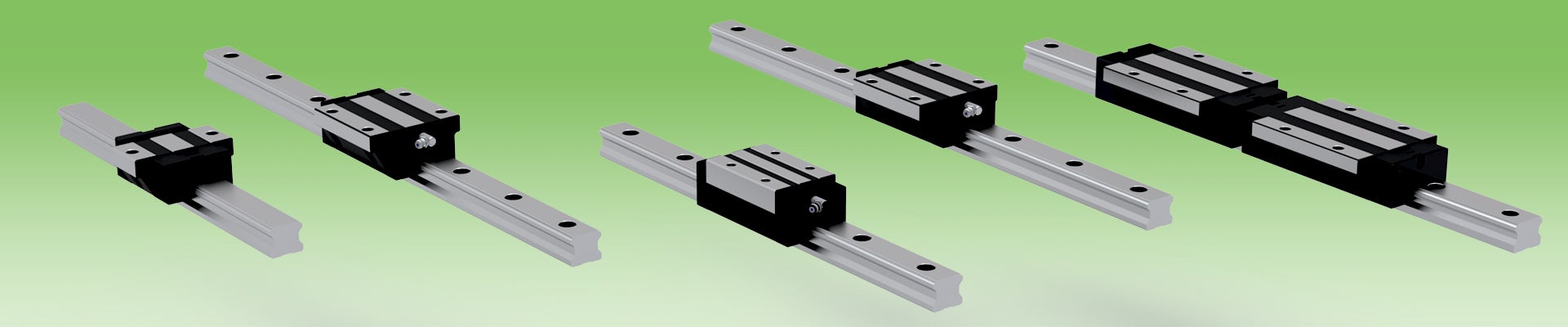

Linear Rail SBI is a guide system with high load capacity that can be used for most linear applications. The blocks use four ball rows, enabling high load capacity in all directions. Linear Rail SBI is designed with a relatively low rail profile and wide base resulting in great rigidity. There is a wide range of block sizes and executions to meet a broad range of requirements. All rail sizes available in either top or bottom mounting versions. The linear rail guides can be delivered with different types of surface treatments.

The guide blocks can be configured with different sealings and wipers suitable for various environmental conditions.

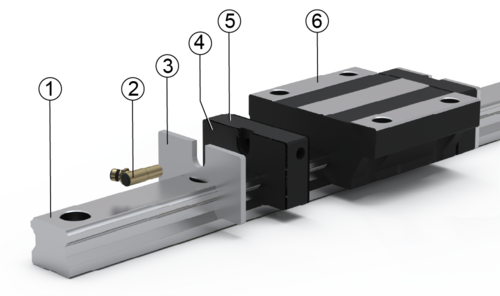

1. Linear rail
2. Standard grease nipple
3. Scraper
4. End seal
5. End plate
6. Linear block

Circular arc groove

Two-point ball contact combine high load capacity with low and even rolling friction over the full load range.

45° angle of contact

Four rows of circular arc groove contact balls at an angle of 45 degrees provides the same capacity in all four main directions.

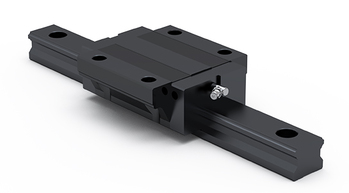

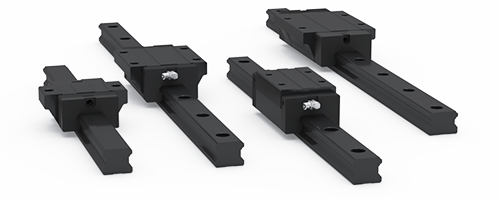

Raydent treatment

The Raydent treatment gives a corrosion resistant and patented black surface. Stainless steel balls are available on special request and for a few sizes only. Please contact us for more information.

Ceramic balls with several advantages

In cooperation with CeramicSpeed we offer an upgrade of your system with ceramic balls and/or coating solutions. Ceramic Speed’s long-life coatings provide extremely high corrosion resistance and wear and friction-suppressant properties. Ceramic balls are non-corrosive and lightweight and give high durability. Contact us for further information.
