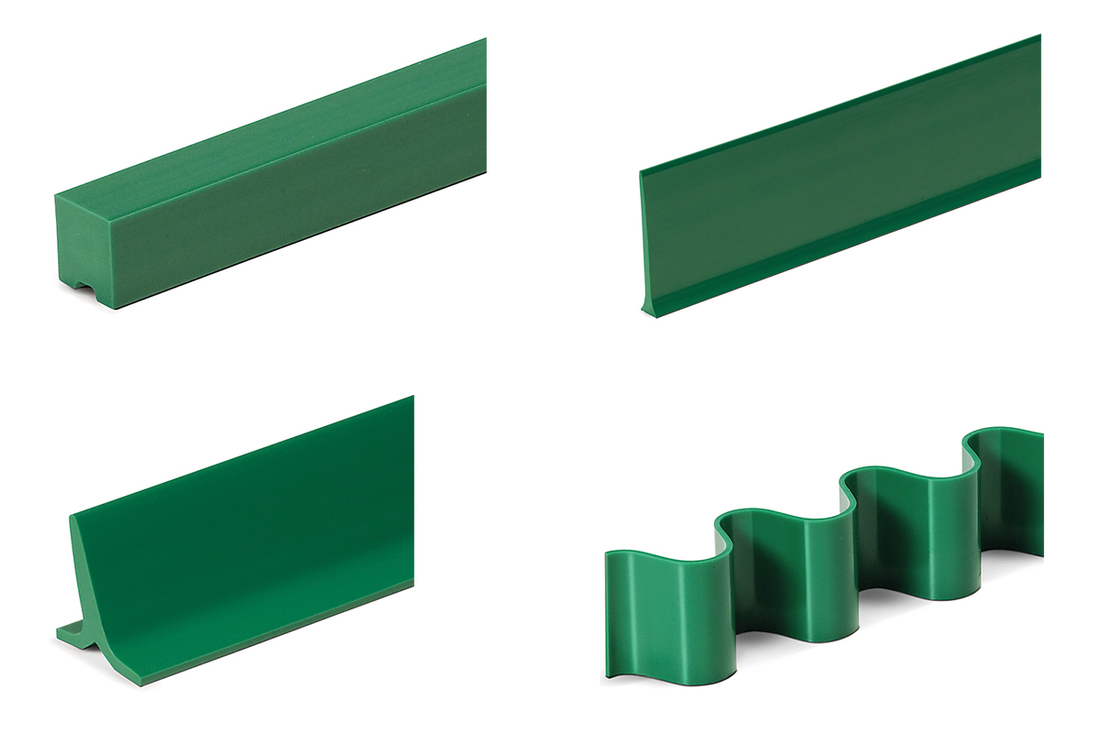

Belt Profiles
Please be aware that the material of the profiles must be the same as the chosen belt.
Dimensions in mm.
Read more
Dimensions in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Code | Compatible with | Material | Colour | FDA | B | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 1 | BF40E & BF80E | TPU | Green/White | Yes | 8 | 4 | |||
|
|
2 | 1 | BF40E & BF80E | TPU | Green/White | Yes | 8 | 8 | |||
|
|
2 | 1 | BF80E | TPU | Green/White | Yes | 12 | 12 | |||
|
|
2 | 1 | BF80E | TPU | Green/White | Yes | 12 | 16 | |||
|
|
2 | 1 | BF40E & BF80E | PVC | Green/Grey | Available (E-PQ-R) | 8 | 4 | |||
|
|
2 | 1 | BF40E & BF80E | PVC | Green/Grey | Available (E-PQ-R) | 8 | 8 | |||
|
|
2 | 1 | BF80E | PVC | Green/Grey | Available (E-PQ-R) | 12 | 12 | |||
|
|
2 | 1 | BF80E | PVC | Green/Grey | Available (E-PQ-R) | 12 | 16 | |||
|
|
2 | 2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 20 | |||
|
|
2 | 2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 30 | |||
|
|
2 | 2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 40 | |||
|
|
2 | 2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 60 | |||
|
|
2 | 2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 80 | |||
|
|
2 | 3 | BF80E | TPU | Green/White | Yes | 20 | 20 | |||
|
|
2 | 3 | BF80E | TPU | Green/White | Yes | 30 | 30 | |||
|
|
2 | 3 | BF80E | PVC | Green/White | Available (E-PQ-R) | 20 | 20 | |||
|
|
2 | 3 | BF80E | PVC | Green/White | Available (E-PQ-R) | 30 | 30 | |||
|
|
2 | 4 | BF40E & BF80E | TPU | Green/White | Yes | 1.4 | 20 | |||
|
|
2 | 4 | BF40E & BF80E | TPU | Green/White | Yes | 1.4 | 30 | |||
|
|
2 | 4 | BF80E | TPU | Green/White | Yes | 1.4 | 40 | |||
|
|
2 | 4 | BF80E | TPU | Green/White | Yes | 1.4 | 50 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
