Motors for BF80
Standard motors for BF80 conveyors

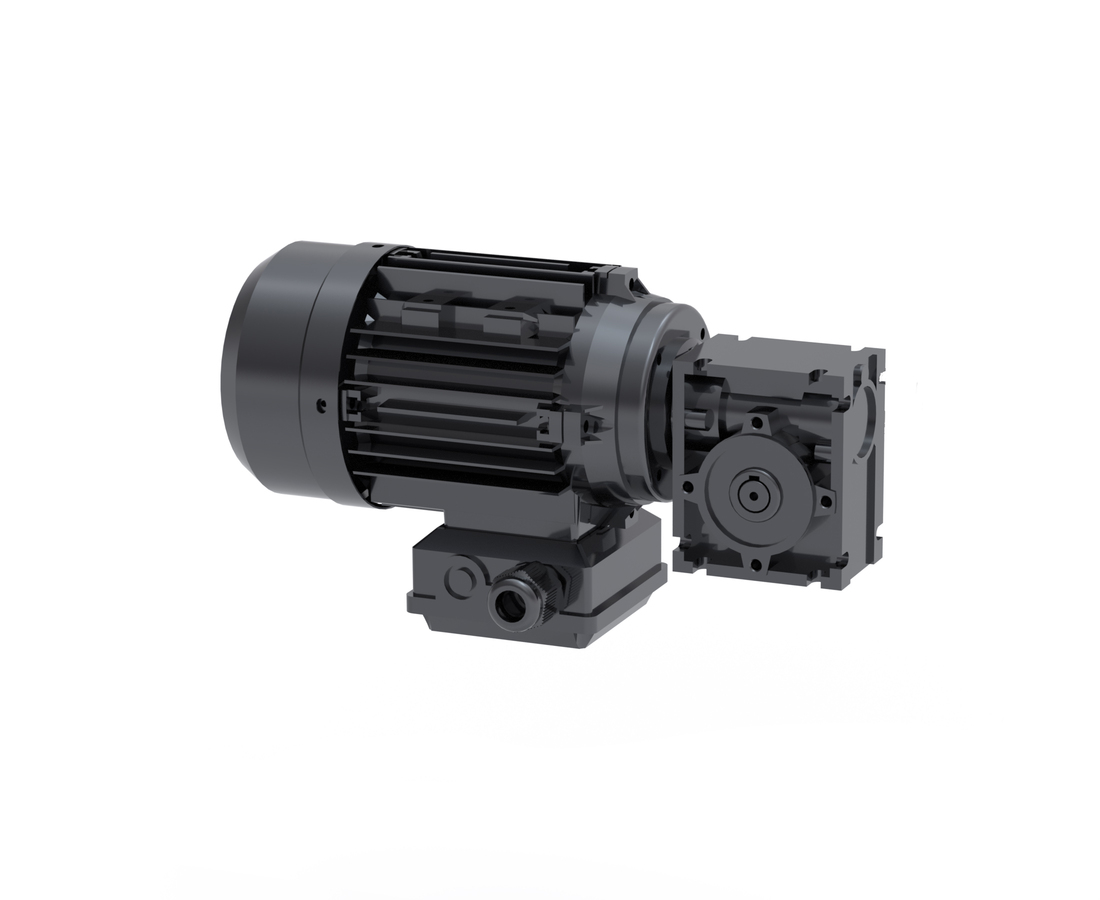

Motors for BF40
This is a selection of standard motors available for our BF40 series.
We can customise the drive shaft to accommodate many different motors and gear choices. Please contact Rollco for more information.
Dimensions in mm.
NOTE!
Other motors and frequency converters are available on request. Individual motors are not tested. Motors and gears are not assembled to the unit.
Read more
We can customise the drive shaft to accommodate many different motors and gear choices. Please contact Rollco for more information.
Dimensions in mm.
NOTE!
Other motors and frequency converters are available on request. Individual motors are not tested. Motors and gears are not assembled to the unit.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Voltage (V) | Power (kW) | Frequency (Hz) | Current (A) | Speed (rpm) | Protection Class | Phase | Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 230/400 | 0.12 | 50 | 0.82 / 0.47 | 1350 | IP55 | 3 | 1 | |||
|
|
2 | 230/400 | 0.18 | 50 | 1.18 / 0.68 | 1350 | IP55 | 3 | 2 | |||
|
|
2 | 230/400 | 0.25 | 50 | 1.58 / 0.91 | 1340 | IP55 | 3 | 3 | |||
|
|
2 | 230/400 | 0.18 | 50 | 1.36 | 1340 | IP55 | 1 | 4 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
