Tracking Guides
This profile is used as a tracking guide. It is longitudinally applied on the running side of a belt, mainly in applications where transversal forces occur.

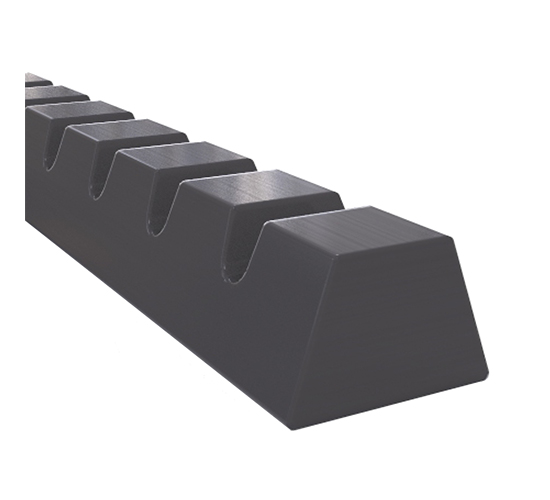

Highly flexible V-shaped notched PVC-profile running over pulleys with a specifically shaped groove.
Profiles are applied to the belt using hot air welding or glue.
Dimensions in mm.
Read more
Highly flexible V-shaped notched PVC-profile running over pulleys with a specifically shaped groove.
Profiles are applied to the belt using hot air welding or glue.
Dimensions in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Code | Material | B | H | S | Weight (kg/m) | ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 1 | TPU | 6 | 4 | 4 | 0.03 | Min. 40 | |||
|
|
2 | 2 | TPU | 8 | 5 | 5 | 0.04 | Min. 40 | |||
|
|
2 | 3 | TPU | 10 | 6 | 6 | 0.06 | Min. 40 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
