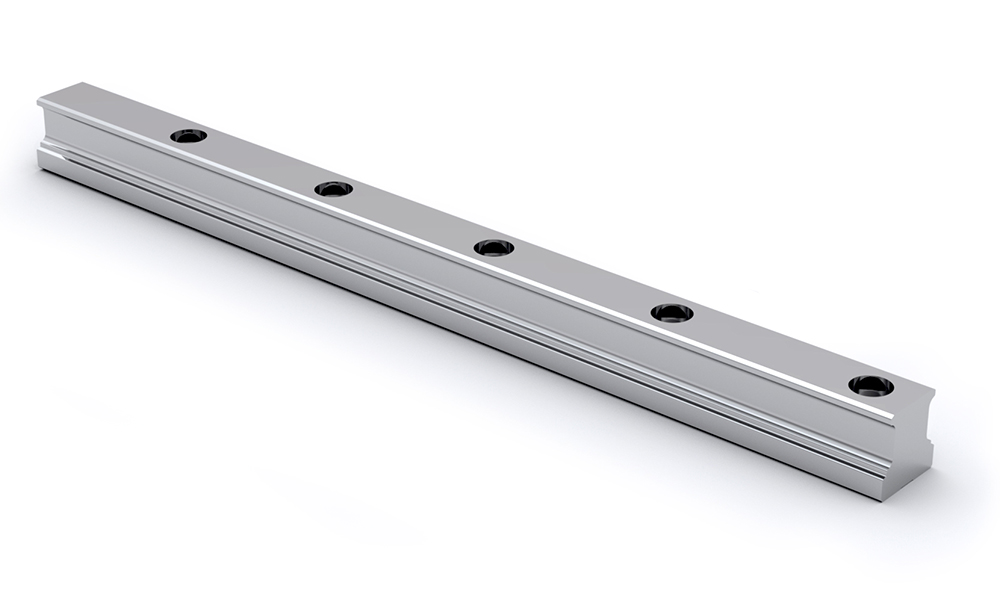

HRC Rail

STOCK ITEM
Counterbore from above.
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Dimensions in mm.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Length (mm) Weight Rail (g/m)
1 4000 1290
1 4000 2280
1 4000 3020
1 4000 4380
1 4000 6790
1 4000 10530
1 4000 14000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote H1 W1 D x d x g1 Hole Pitch (P)
15 15 7.5 x 4.5 x 5.3 60
20 20 9.5 x 6 x 8.5 60
23 23 11 x 7 x 9 60
27 28 14 x 9 x 12 80
32 34 14 x 9 x 12 80
39 45 20 x 14 x 17 105
45.7 53 24 x 16 x 20 120
  • STOCK ITEM

    HRC MN
    Slim – standard length – standard height
  • STOCK ITEM

    HRC ML
    Slim – long – standard height
  • STOCK ITEM

    ERC MN
    Slim – standard length – low height
  • STOCK ITEM

    HRC FN
    Flanged – standard length – standard height (most common)
  • STOCK ITEM

    HRC FL
    Flanged – long – standard height
  • STOCK ITEM
  • STOCK ITEM

    ARC MN
    Slim – standard length – low height
  • STOCK ITEM
  • STOCK ITEM

    ARC FS
    Flanged – short – low height
  • STOCK ITEM

    ARC FN
    Flanged – standard length – low height
  • STOCK ITEM
  • STOCK ITEM
