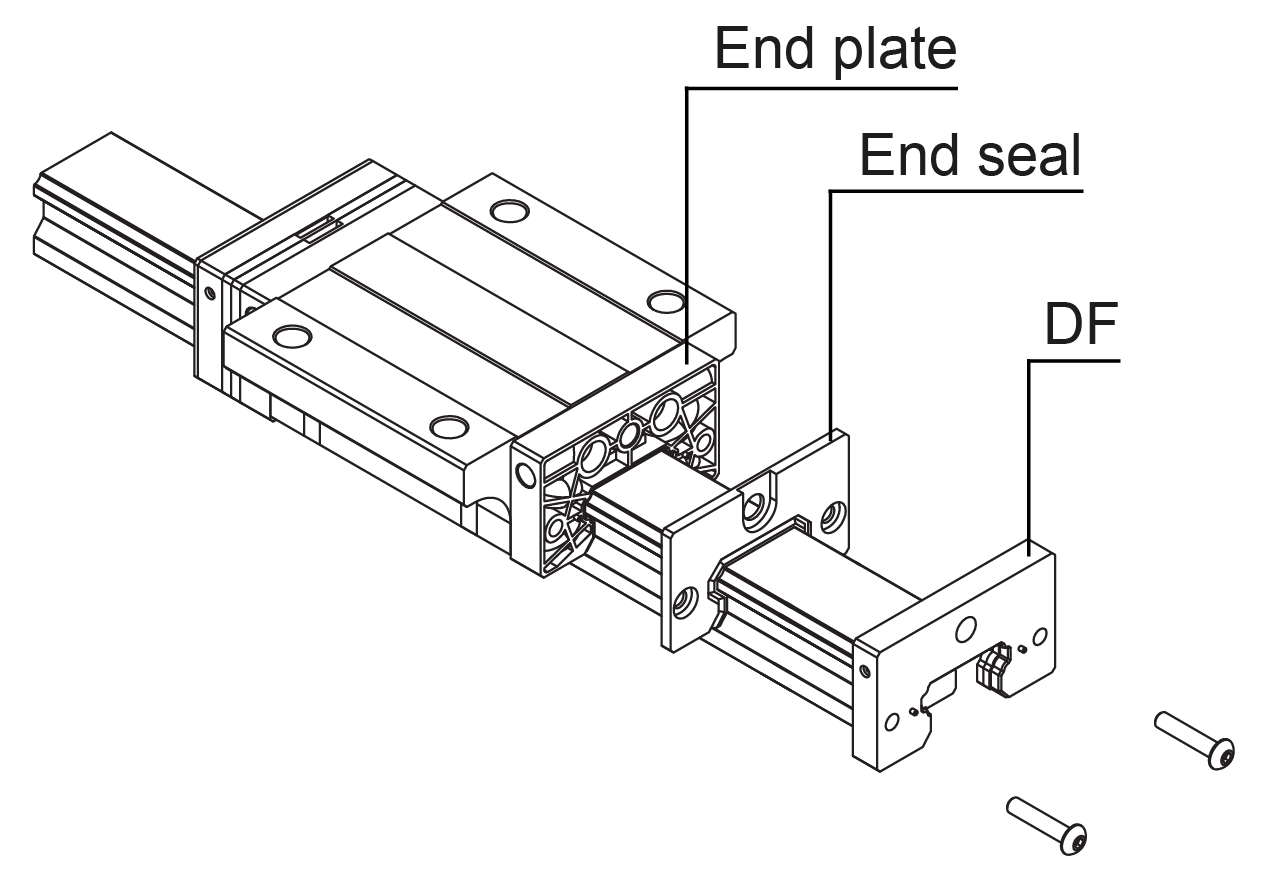

DF Seal High Dust Proof
To protect the linear rail system from fine foreign matter, the high dust-proof DF seal can be used.

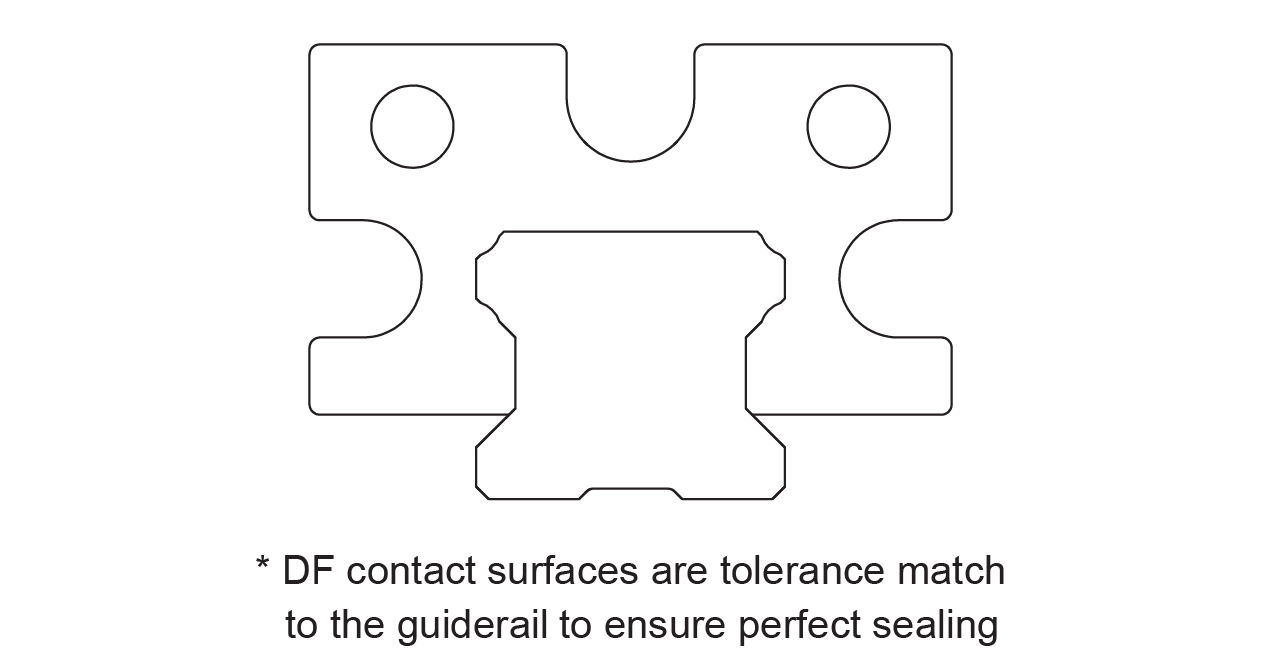

A high density felt in the DF unit contact the entire rail profile section, leaving no gaps for dust and debris to enter the block.
For DF to be the most effective, it is recommended to either combine it with bottom mounted rails SBI-B or using
the option ST Stainless Dustproof Tape.
Dimensions in mm.
Read more
A high density felt in the DF unit contact the entire rail profile section, leaving no gaps for dust and debris to enter the block.
For DF to be the most effective, it is recommended to either combine it with bottom mounted rails SBI-B or using
the option ST Stainless Dustproof Tape.
Dimensions in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Block Type | W | t | H | D |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL, FV, SV | 33.4 | 7 | 20.2 | 4 | ||
|
|
|
1 | FL, FLL, SL, SLL | 43.4 | 7 | 24.6 | 6.5 | ||
|
|
|
1 | CL, CLL, FV, SV | 43.4 | 7 | 22.6 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 47 | 7 | 29.7 | 6.5 | ||
|
|
|
2 | CL, CLL, FV, SV | 47 | 7 | 26.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 59 | 8 | 34.2 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 69 | 8 | 39.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 85 | 8 | 49.7 | 10.5 | ||
|
|
|
2 | FL, FLL, HL, HLL, SL, SLL | 98 | 9 | 56 | 10.5 | ||
|
|
|
2 | FL, FLL, SL, SLL | 123 | 9 | 69 | 10.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
