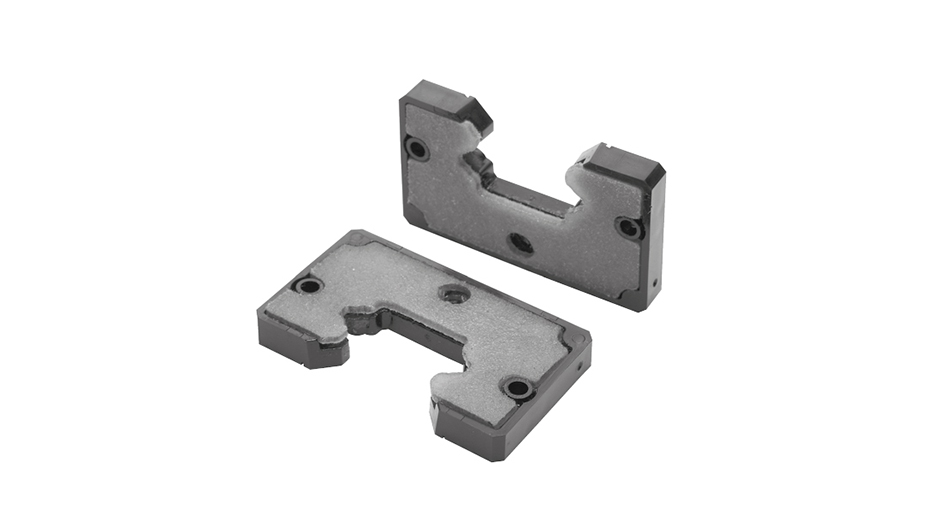

DF Seal High Dust Proof
Dustproof end seal

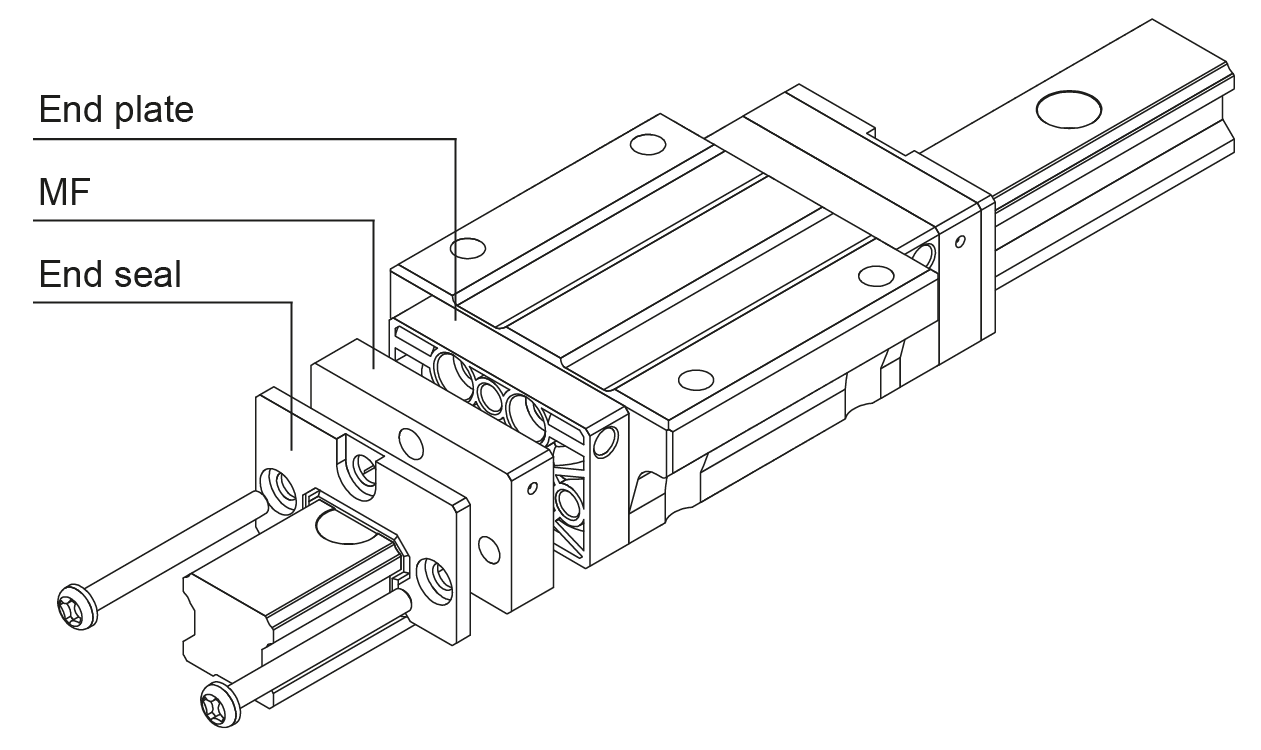

MF Container Self Lubricant
Self-lubricant container MF is an option suitable for situations where re-lubrication is difficult or impossible to achieve.
Option MF consist of a small container filled with grease impregnated felt. The felt provides a continuous oil film directly and only on the four raceways of the rail profile.
This results in a very precise and long-lived lubrication in exactly the most effective spots.
If option MF is selected, the block will be delivered without grease nipple.
Dimensions in mm.
Read more
Option MF consist of a small container filled with grease impregnated felt. The felt provides a continuous oil film directly and only on the four raceways of the rail profile.
This results in a very precise and long-lived lubrication in exactly the most effective spots.
If option MF is selected, the block will be delivered without grease nipple.
Dimensions in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Block Type | W | t | H | D |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL, FV, SV | 33.4 | 7 | 20.2 | 4 | ||
|
|
|
1 | FL, FLL, SL, SLL | 43.4 | 7 | 24.6 | 6.5 | ||
|
|
|
1 | CL, CLL, FV, SV | 43.4 | 7 | 22.6 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 47 | 7 | 29.7 | 6.5 | ||
|
|
|
1 | CL, CLL, FV, SV | 47 | 7 | 26.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 59 | 8 | 34.2 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 69 | 8 | 39.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 85 | 8 | 49.7 | 10.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 98 | 9 | 56 | 10.5 | ||
|
|
|
2 | FL, FLL, SL, SLL | 123 | 9 | 69 | 10.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
ZZ Steel Scraper
Protects block from contaminants
