Rail RMG
Hardened ground rail

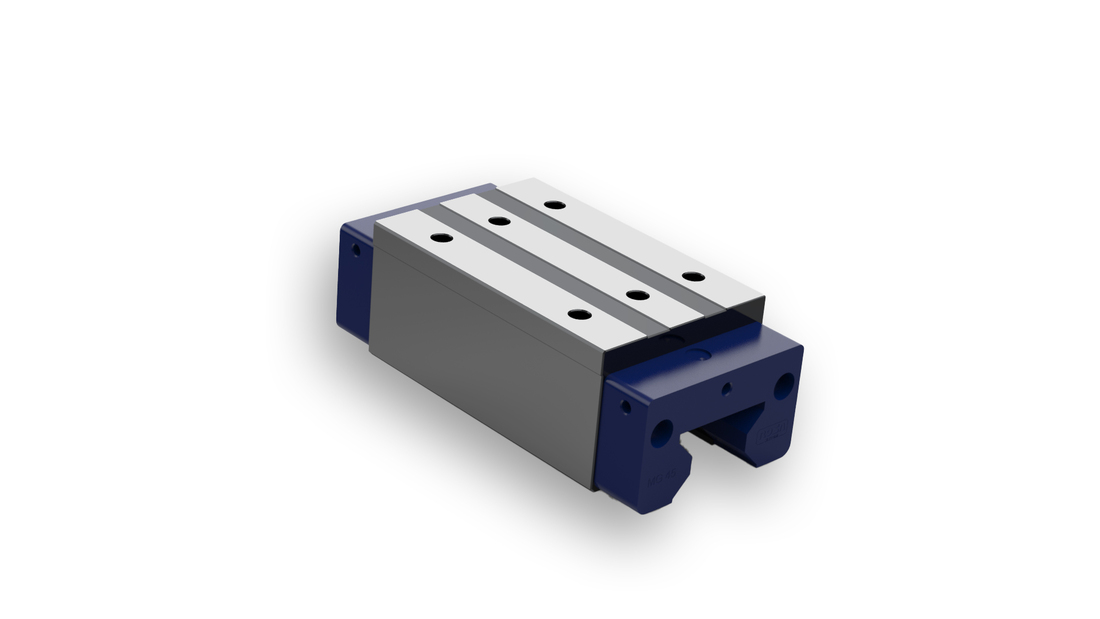

Narrow Block Type SL
The Rollco Roller Guides are highly developed solutions for the high-tech industry.
The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
Read more
The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Dynamic Moment Mr (Nm) | Dynamic Moment Mp (Nm) | Dynamic Moment My (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 38900 | 76800 | 1150 | 970 | 970 | 583 | 491 | 491 | ||||
|
|
|
2 | 72600 | 136000 | 3014 | 2243 | 2243 | 1595 | 1187 | 1187 | ||||
|
|
|
2 | 119500 | 242200 | 6672 | 4951 | 4951 | 3293 | 2444 | 2444 | ||||
|
|
|
2 | 176000 | 351000 | 11915 | 8910 | 8910 | 5977 | 4470 | 4470 | ||||
|
|
|
2 | 276000 | 579000 | 22100 | 11840 | 11840 | 10530 | 8980 | 8980 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L | H | W | L1 | H1 | h2 | W1 | W2 | S1 | S4 | P | Q | T | D x d x g1 | Hole Pitch (P) | P1 | P2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
109.7 | 40 | 48 | 81.5 | 24.5 | 33.5 | 23 | 12.5 | M6 | 21.2 | - | 9.5 | 9 | 11 x 7 x 11.5 | 30 | 50 | 35 | ||||
|
|
|
142.3 | 55 | 70 | 103 | 32 | 48 | 34 | 18 | M8 | 22 | 40 | 14.9 | 12 | 15 x 9 x 17 | - | 72 | 50 | ||||
|
|
|
179.8 | 70 | 86 | 133.8 | 40 | 60 | 45 | 20.5 | M10 | 33.9 | 52.5 | 18 | 18 | 20 x 14 x 19 | - | 80 | 60 | ||||
|
|
|
215 | 80 | 100 | 162 | 48 | 67 | 53 | 23.5 | M12 | 42 | 60 | 19 | 19 | 24 x 16 x 22 | - | 95 | 75 | ||||
|
|
|
272.3 | 90 | 126 | 210.3 | 55 | 78 | 63 | 31.5 | M16 | 49.2 | 75 | 15 | 22 | 26 x 18 x 26 | - | 120 | 76 |
-
