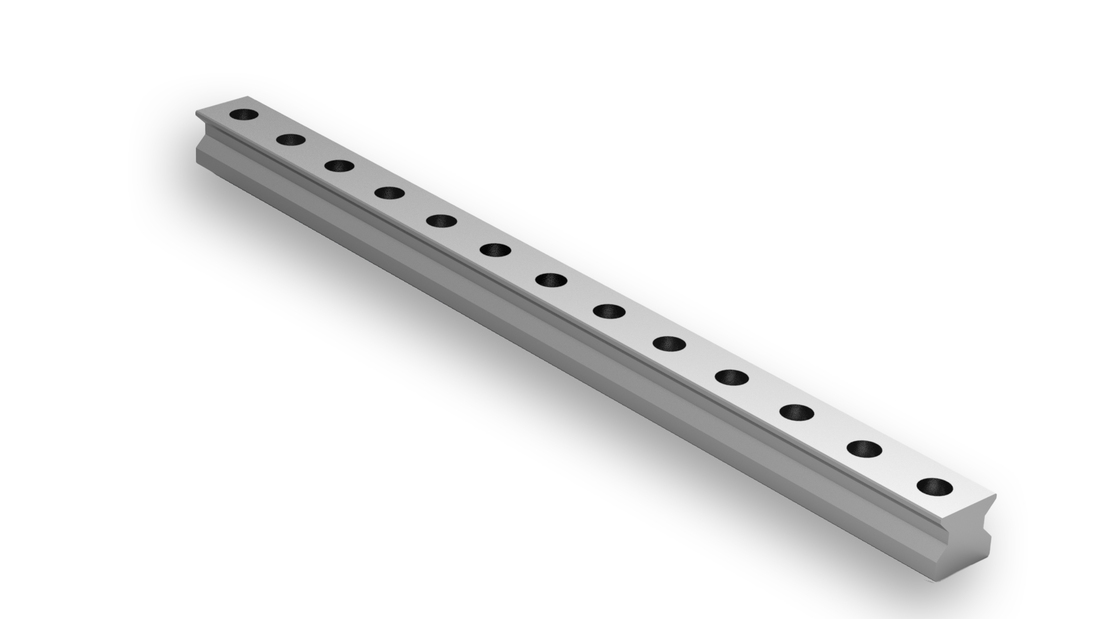

Rail RMG

STOCK ITEM
The Rollco Roller Guides are highly developed solutions for the high-tech industry. The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.

Dimensions in mm
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight (kg/m)
Get quote 1 3.4
Get quote 1 6.5
Get quote 1 10.7
Get quote 2 15.2
Get quote 2 22.5

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote H1 W1 D x d x g1 Hole Pitch (P)
Get quote 24.5 23 11 x 7 x 11.5 30
Get quote 32 34 15 x 9 x 17 40
Get quote 40 45 20 x 14 x 19 52.5
Get quote 48 53 24 x 16 x 22 60
Get quote 55 63 26 x 18 x 26 75
