CP planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy.

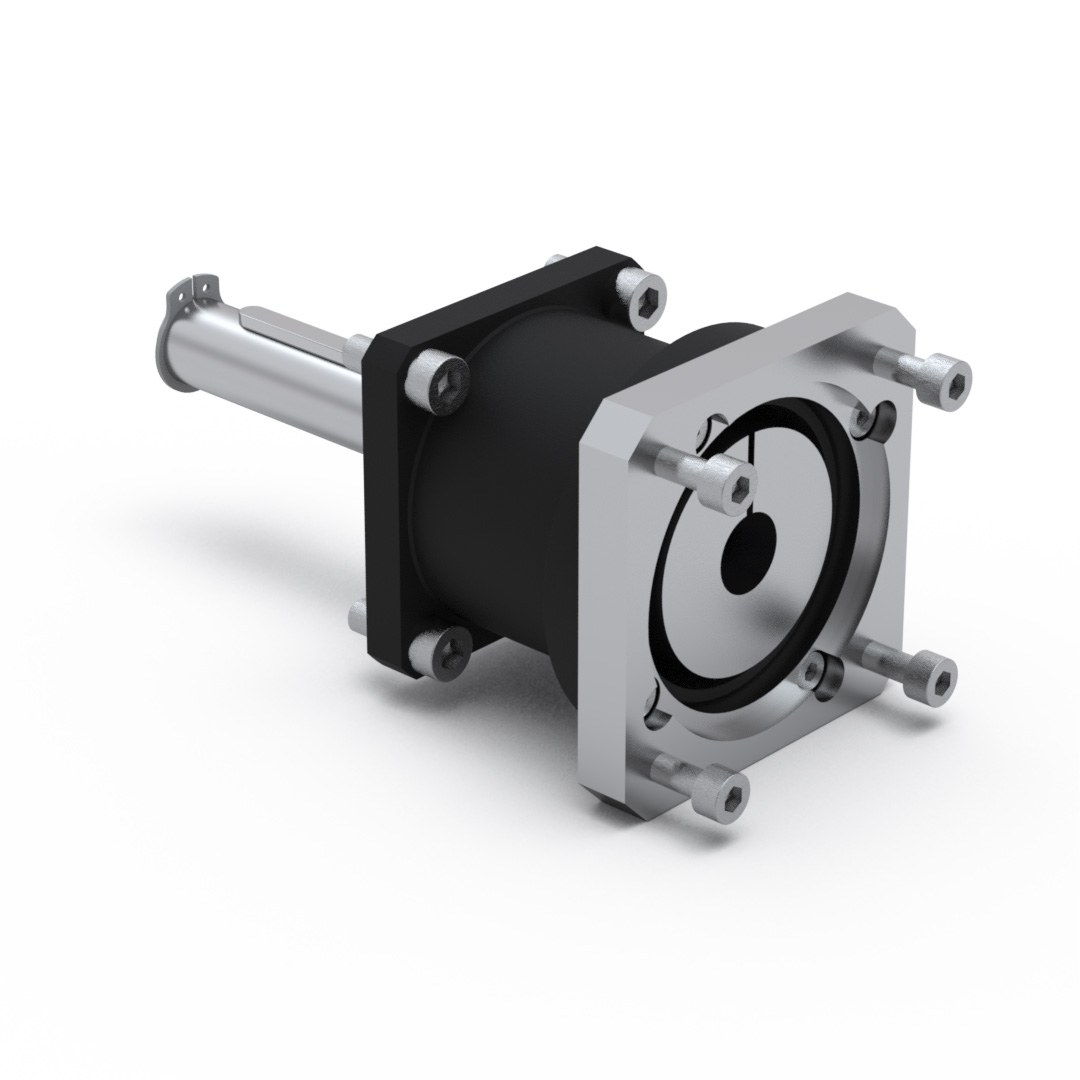

Adapter kit RHL
Easily connect your RHL Linear unit with a planetary gear by using our adapter-kit. Design your complete solution of RHL Linear unit + Adapter kit + Planetary gear with our CAD-Configurator.
Read more
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | D1 | D2 | D3 | G1 | N1 | L | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | RHL80 | 14 | 60 | 75 | M5 | 6.4 | 62 | 60x60 | 70x70 | |||
|
|
|
2 | RHL110 | 24 | 110 | 130 | M8 | 8.4 | 86 | 90x90 | 115x115 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
CPS planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy. -
CPK bevel gearbox
Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin. -
CPSK bevel gearbox
Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.
