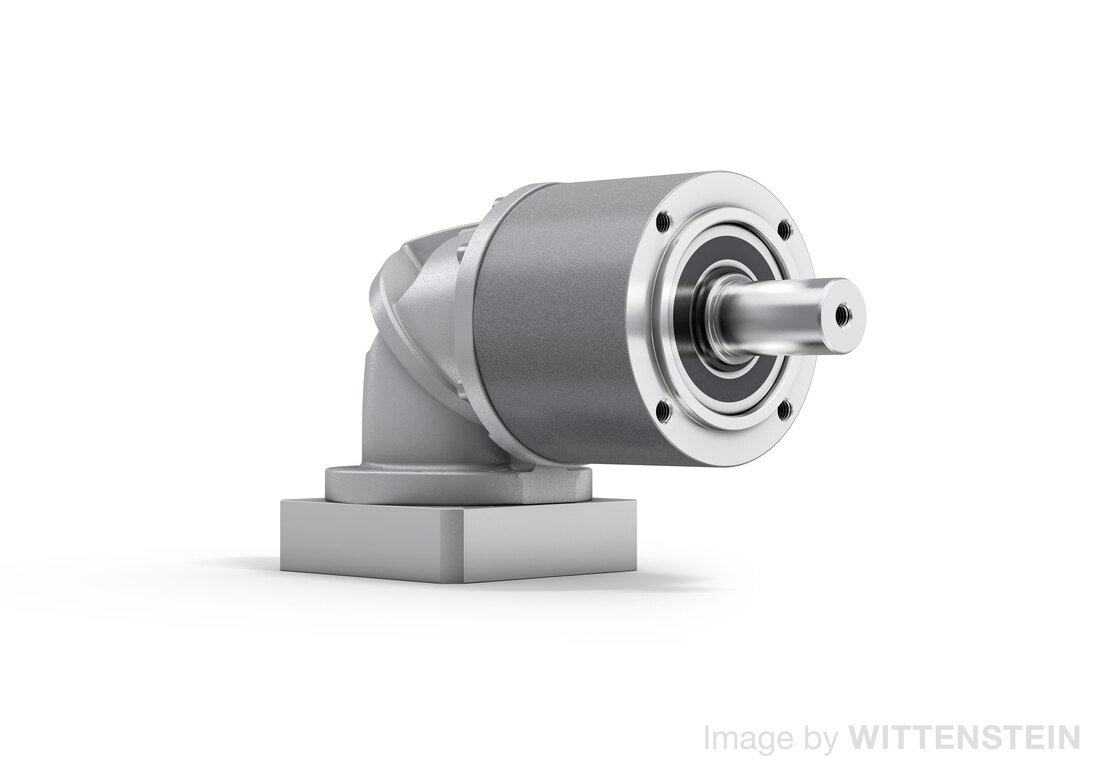

CPK bevel gearbox

The most economical right-angle planetary gearbox. Based on the CP gearbox with an additional bevel-gear input stage. Used where space-constraints does not allow an in-line assembly with the motor. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Read more

Product Information

Ratio: 3-100
Max. Torque (Nm): 14 - 700
Other models: food-grade lubrication
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Ratio Size
2 4 / 5 / 7 / 8 / 10 / 16 / 20 / 25 / 28 / 35 / 40 005
2 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 015
2 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 025
2 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 035
2 5 / 8 / 10 / 25 / 50 / 100 045

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
