TB80
Timing belt conveyor with end drive. Single unit or a system of up to ten synchronized conveyors.

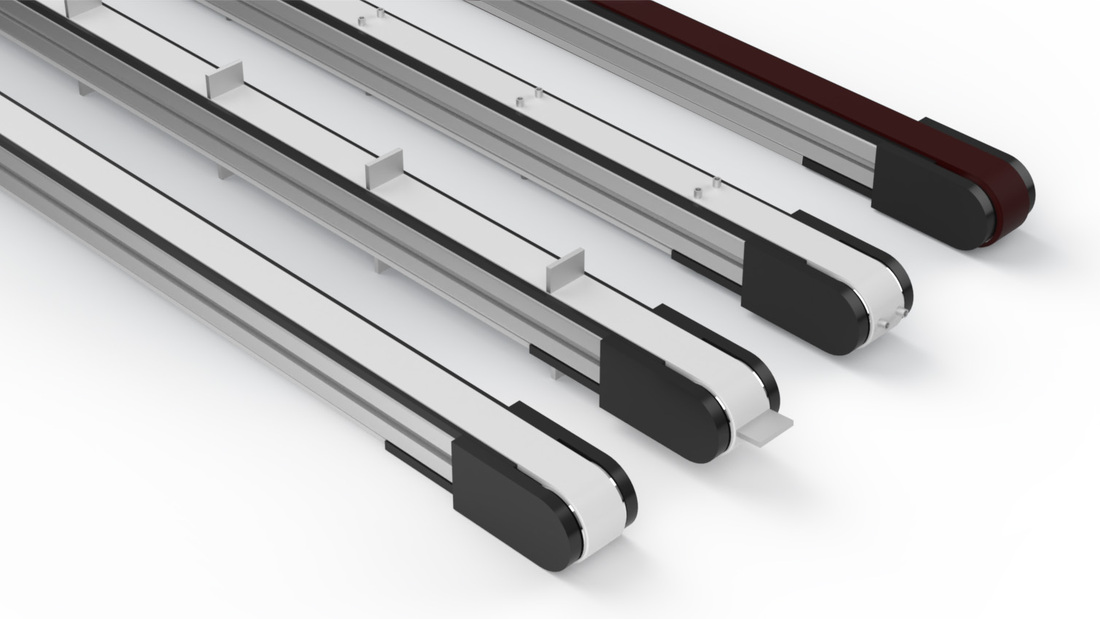

Belts

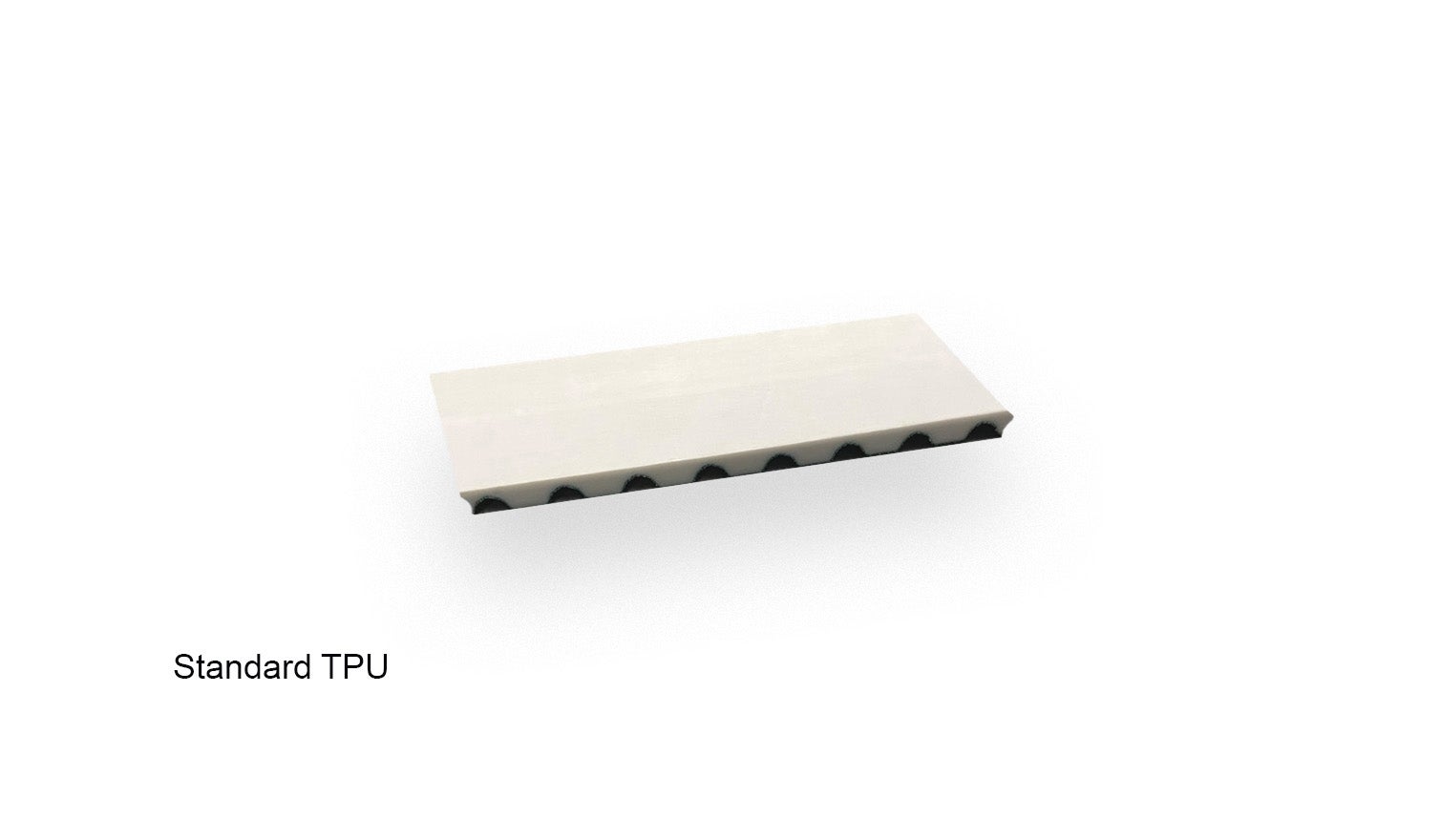

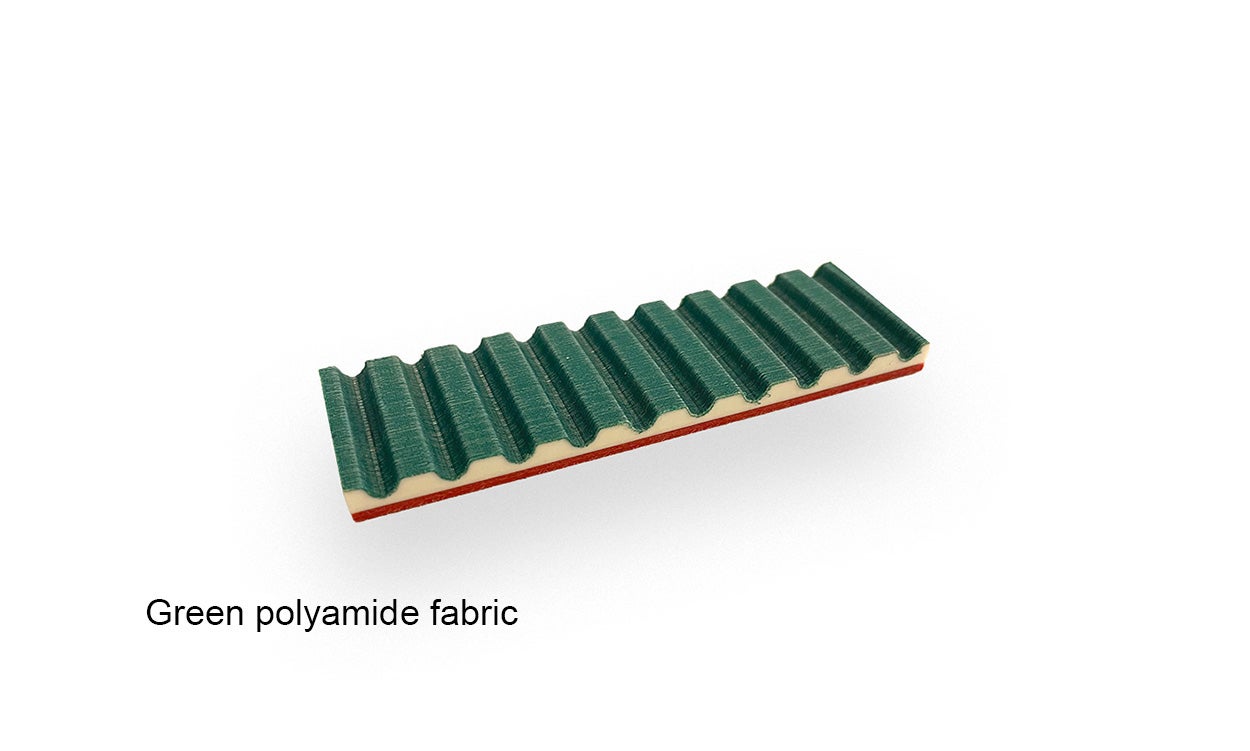

The standard belt for our Timing belt conveyors is a white TPU with steel cord that is covered on the tooth side with a polyamide fabric to reduce noise and friction.
The profile of the belt is the well proven AT10 for both TB40 and TB80.

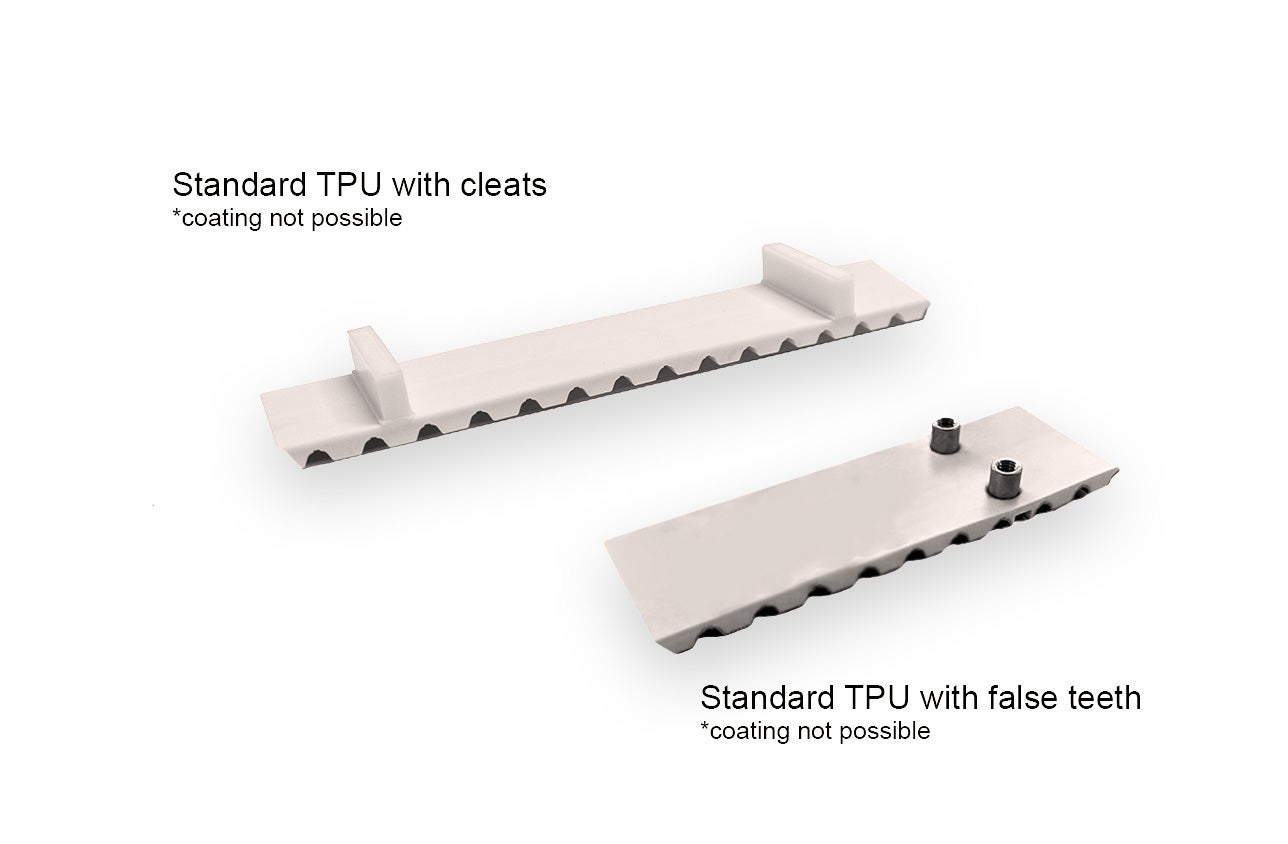

Option with coating, cleats, and false teeth.

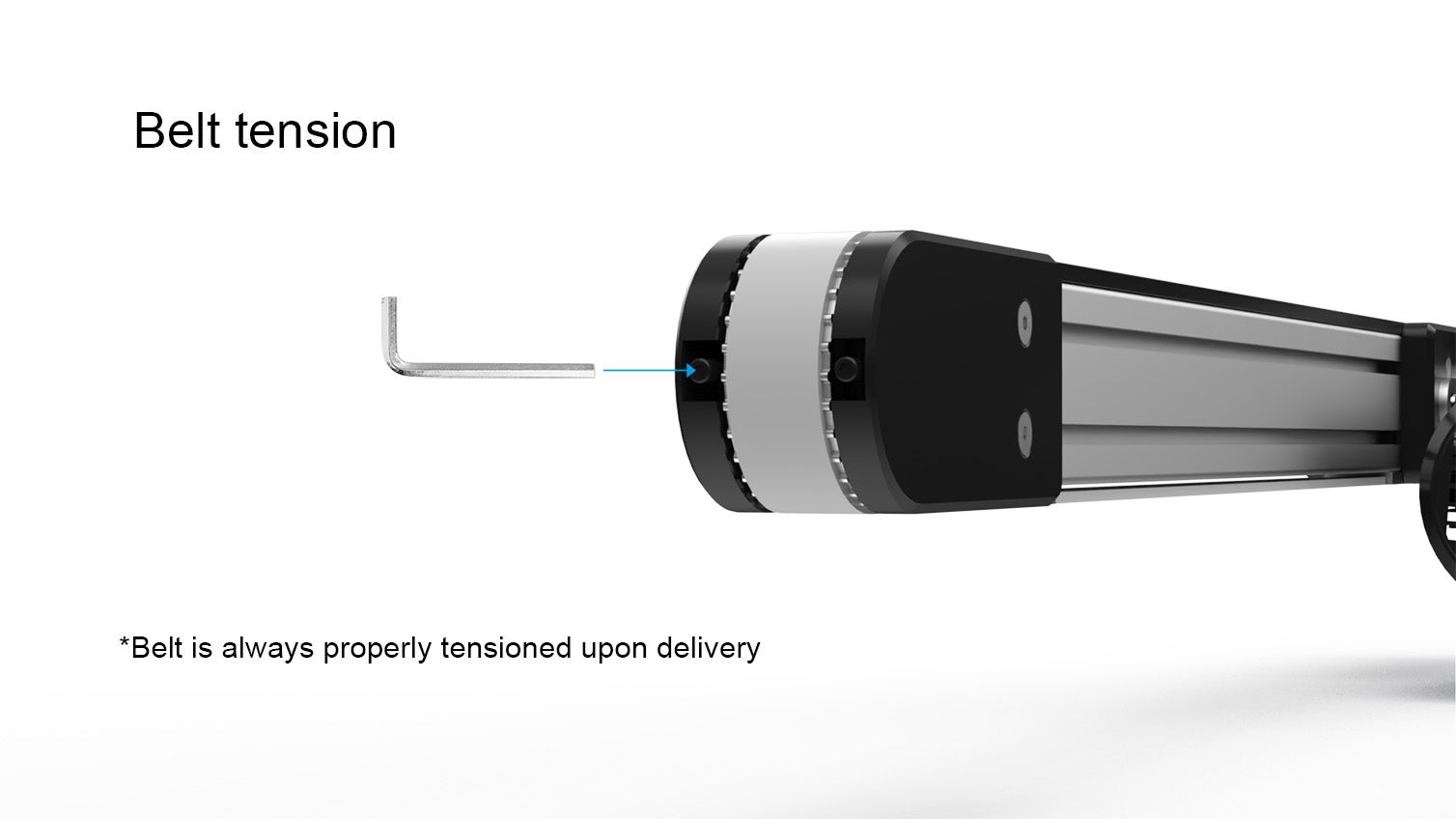

Belt tension is easily adjusted with open screws on the slave/return side.
Dimensions in mm.
For other type of belt requirements please contact Rollco.
Read more
The profile of the belt is the well proven AT10 for both TB40 and TB80.
Option with coating, cleats, and false teeth.
Belt tension is easily adjusted with open screws on the slave/return side.
Dimensions in mm.
For other type of belt requirements please contact Rollco.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Type | Tooth | Material | Colour | Material Tooth Side | Timing Belt Conveyor | Cleat Size (HxWxT) | C/C Cleats/False Teeth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Standard | AT10 | TPU | White (Top surface) | PA fabric green | TB40/TB80 | - | - | |||
|
|
|

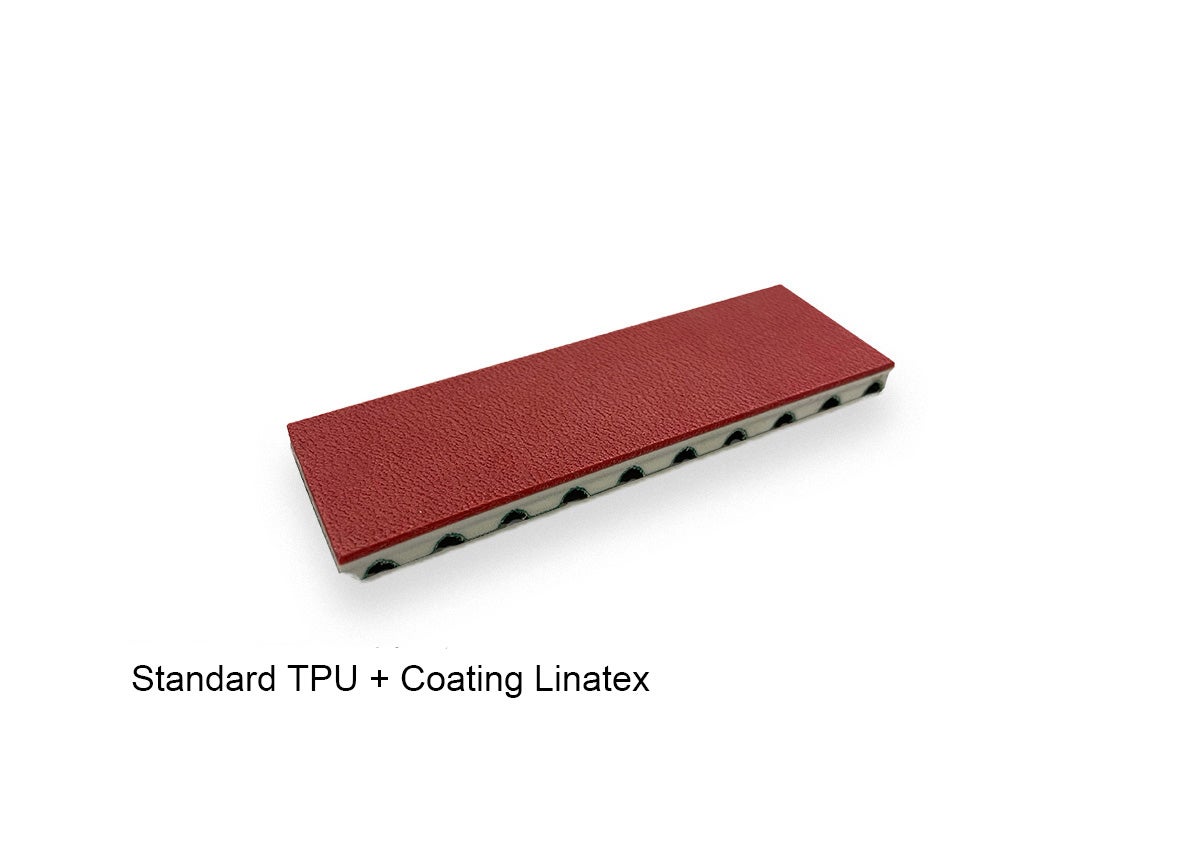

2 | Standard + Coating | AT10 | TPU + Linatex 2mm | Red (Top surface) | PA fabric green | TB40/TB80 | - | - | |||
|
|
|
2 | Standard + Coating | AT10 | TPU + Linatex 4mm | Red (Top surface) | PA fabric green | TB80 | - | - | |||
|
|
|
2 | Standard + Cleats | AT10 | TPU + Bonded PU | White (Top surface) | PA fabric green | TB40/TB80 | 10x32x4 | See CAD-configurator | |||
|
|
|
2 | Standard + Cleats | AT10 | TPU + Bonded PU | White (Top surface) | PA fabric green | TB40/TB80 | 20x32x4 | See CAD-configurator | |||
|
|
|
2 | Standard + Cleats | AT10 | TPU + Bonded PU | White (Top surface) | PA fabric green | TB40/TB80 | 30x32x4 | See CAD-configurator | |||
|
|
|
2 | Standard + False Teeth | AT10 | TPU + Stainless steel | White (Top surface) | PA fabric green | TB40/TB80 | See drawing | See CAD-configurator |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
