Drive units TB40

We offer a standard selection of motors and gears for TB40 timing belt conveyor.
We can customise the drive shaft to accommodate many different motors and gear choices. Please contact Rollco for more information.
Performance data based on continuous operation at nominal voltage, 50 Hz and 1400 rpm motor speed.
For operation using frequency inverter please contact Rollco.

Motors and gears are not assembled to the unit.
Read more

Product Information

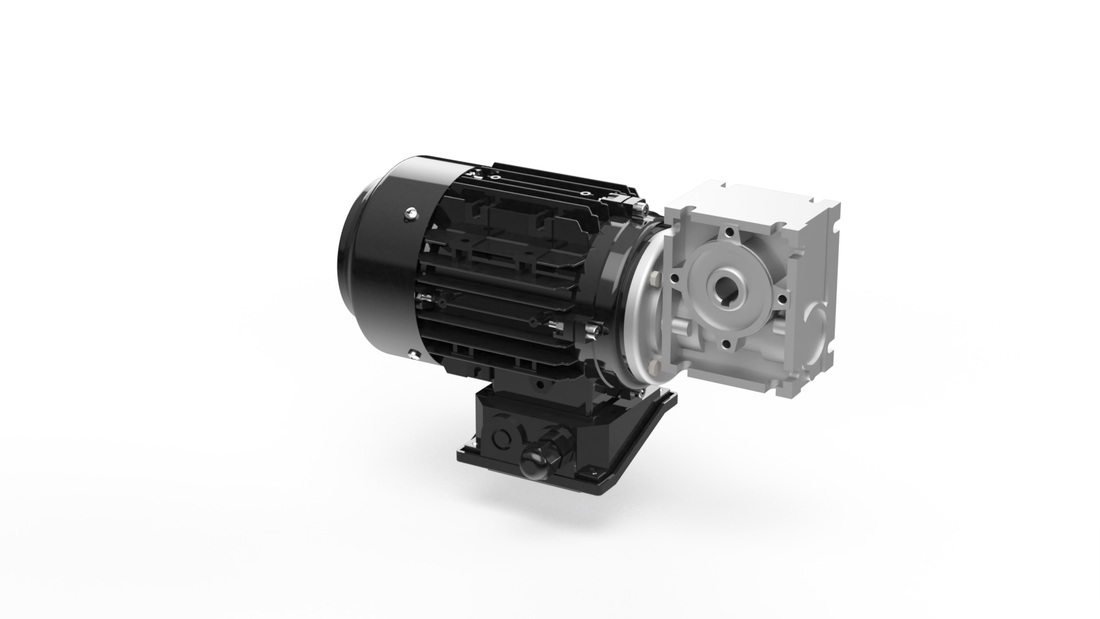

Motor Type: Worm gear drive with 4-pole 3-phase 230/400 VAC-50 Hz motor
Protection Class: IP55
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Speed code Power (kW) Conveyor speed at 50 Hz (m/min) Output speed (rpm) at 50 Hz Output torque at 50 Hz (Nm) Gear reduction Phase current at 400 VAC (A)
Get quote 2 5 0.12 4.8 28 17 50 0.44
Get quote 2 6 0.12 6 35 14 40 0.44
Get quote 2 8 0.12 7.9 46.7 16 30 0.44
Get quote 2 10 0.18 9.5 56 21 25 0.55
Get quote 2 12 0.18 11.9 70 18 20 0.55
Get quote 2 16 0.18 15.9 93.3 14 15 0.55
Get quote 2 24 0.18 23.8 140 10 10 0.55
Get quote 2 32 0.18 31.7 186.7 7.8 7.5 0.55

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
