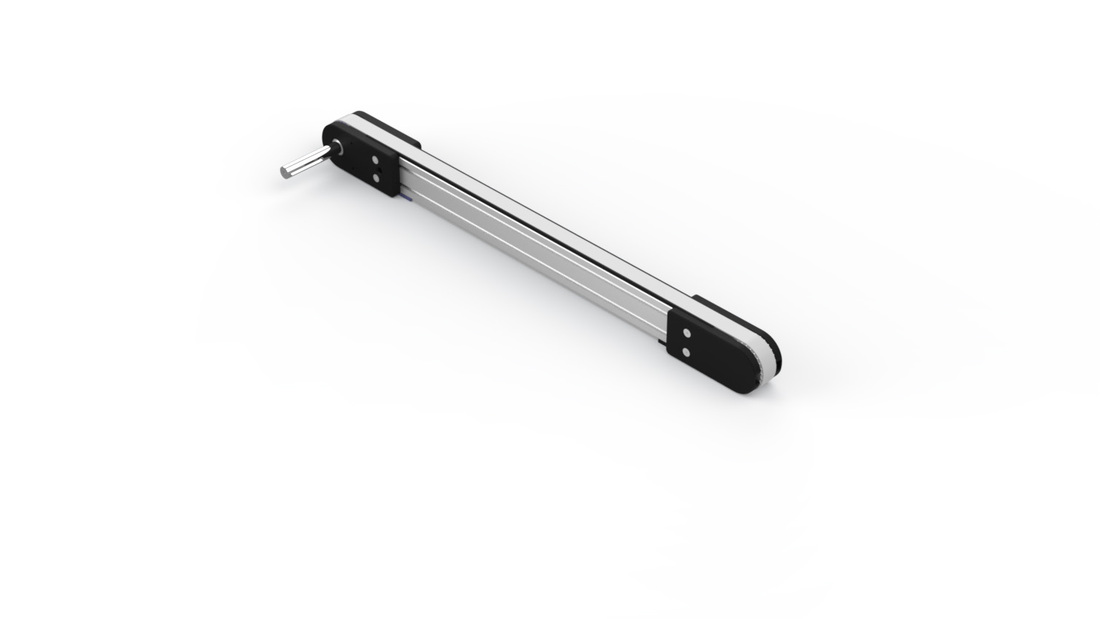

TB80 Single Timing Belt Conveyor

NEW CONFIGURE CAD
Single Timing Belt Conveyor with end drive. Options such as cleats, false teeth and coated belt. Stand 100% compatible with conveyor available as an option. Inclination or declination of +/- 10° is possible. For dimensions outside our standard range, please contact Rollco.
Note: Please see load/speed diagram for current values.
Use our CAD configurator to design your timing belt conveyor according to your preferences and get a visual view, download data sheet and CAD files.

TB40 and TB80 have been extensively tested over its full performance range of speeds, loads, and lengths, together with our standard drive units.
Declaration of installation of partly completed machinery according to Directive 2006/42/EC Annex II 1B.
Dimensions in mm.
Read more

Product Information

Speed (m/min): Up to 54
Drive side: Left/Right
Incline/decline: +/- 10°
Load Capacity (kg): 200
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Profile Width (PW) Profile Height Belt Width (BW) Total Length (L)
Get quote 2 40 80 32 max 6000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
