Distance Sheet BQ
Distance Sheet of steel or stainless steel
BQ---.1000

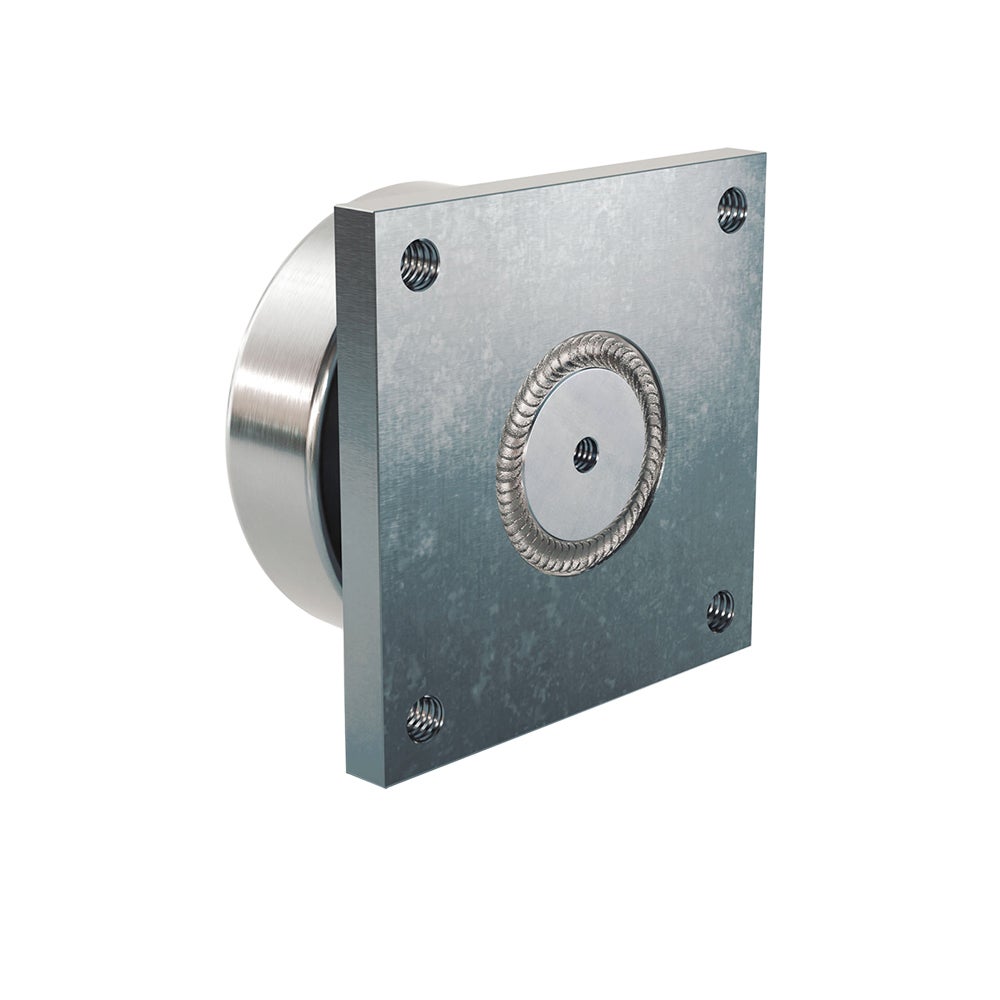

• The fixing element is welded with the respective combined roller
• Special dimensions on request.
* For L measurement, see respective roller.
Order example: Roller + Mounting plate TR070.0200/BQ1000

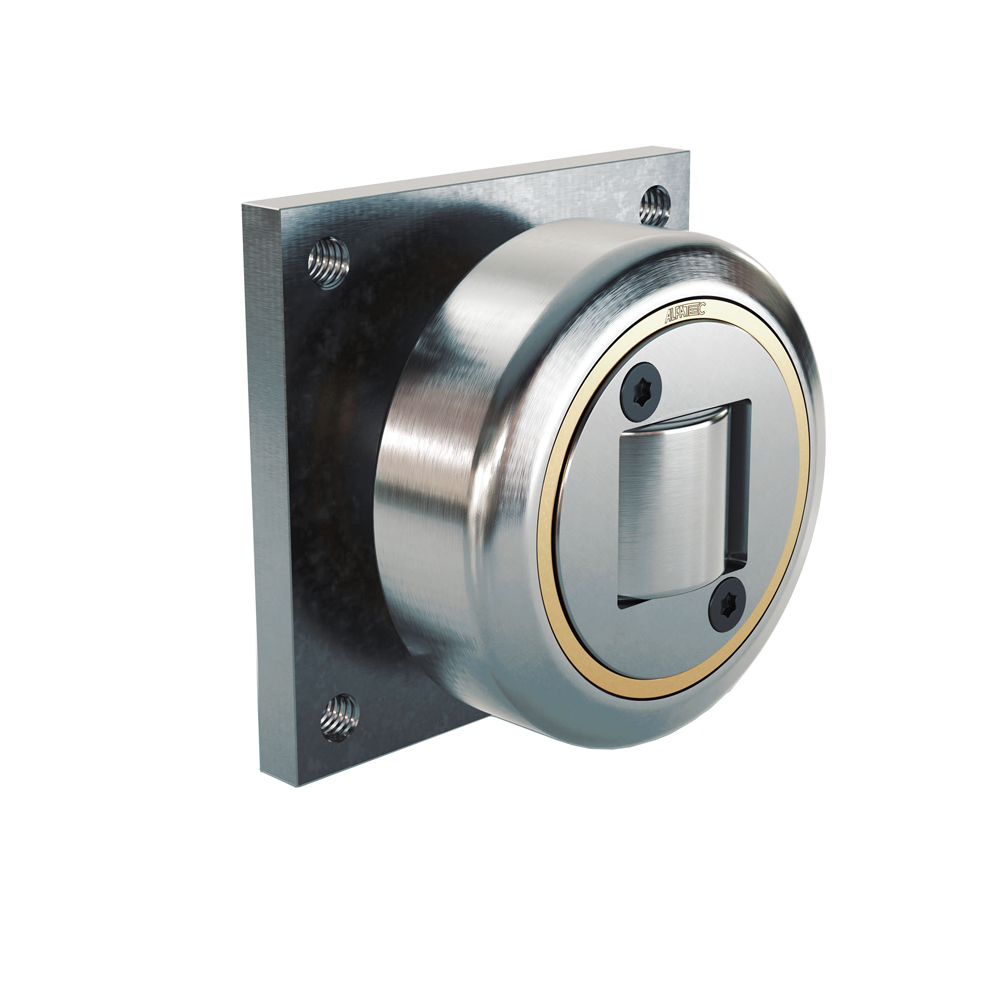

Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm
Dimensions in mm.
Read more
• Special dimensions on request.
* For L measurement, see respective roller.
Order example: Roller + Mounting plate TR070.0200/BQ1000
Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm
Dimensions in mm.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Remark | B | D | C | T |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Roller: TR050.---, Plate: BQ1000, Distance sheet: BQ050.1405, BQ050.1410 | 60 | M8 | 40 | 10 | ||
|
|
|
2 | Roller: TR060.--- / XTR060---, Plate: BQ1000, Distance sheet: BQ060.1405, BQ060.1410 | 70 | M10 | 50 | 12 | ||
|
|
|
2 | Roller: TR070.--- / XTR070---, Plate: BQ1000, Distance sheet: BQ070.1405, BQ070.1410 | 80 | M12 | 60 | 15 | ||
|
|
|
2 | Roller: TR080.--- / XTR080---, Plate: BQ1000, Distance sheet: BQ080.1405, BQ080.1410 | 100 | M12 | 70 | 15 | ||
|
|
|
2 | Roller: TR090.--- / XTR090---, Plate: BQ1000, Distance sheet: BQ090.1405, BQ090.1410 | 120 | M16 | 90 | 20 | ||
|
|
|
2 | Roller: TR110.--- / XTR110---, Plate: BQ1000, Distance sheet: BQ110.1405, BQ110.1410 | 140 | M16 | 100 | 20 | ||
|
|
|
2 | Roller: TR120.--- / XTR120---, Plate: BQ1000, Distance sheet: BQ120.1405, BQ120.1410 | 140 | M16 | 100 | 20 | ||
|
|
|
2 | Roller: TR150.--- / XTR150---, Plate: BQ1000, Distance sheet: BQ150.1405, BQ150.1410 | 160 | M16 | 120 | 25 | ||
|
|
|
2 | Roller: TR180.---, Plate: BQ1000, Distance sheet: BQ180.1405, BQ180.1410 | 200 | M20 | 150 | 30 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
PAS ---.0360
Roller combined fixed with oilamide sliding block for profile UP---.0730 -
PAS ---.0200
Polyamide roller combined fixed, for profile UP---.0730 -
PSAS ---.6200
Polyamide roller combined fixed axial, for profile UP---.0730 -
TR---.0200
Standard Roller Fixed, for profile UP---.0700/0730 -
TR---.0300
Standard Roller, adj. of the axial clearance, for profile UP---.0700 -
TR---.0360
Standard Roller with Oilamide Sliding Block, for profile UP---.0700
