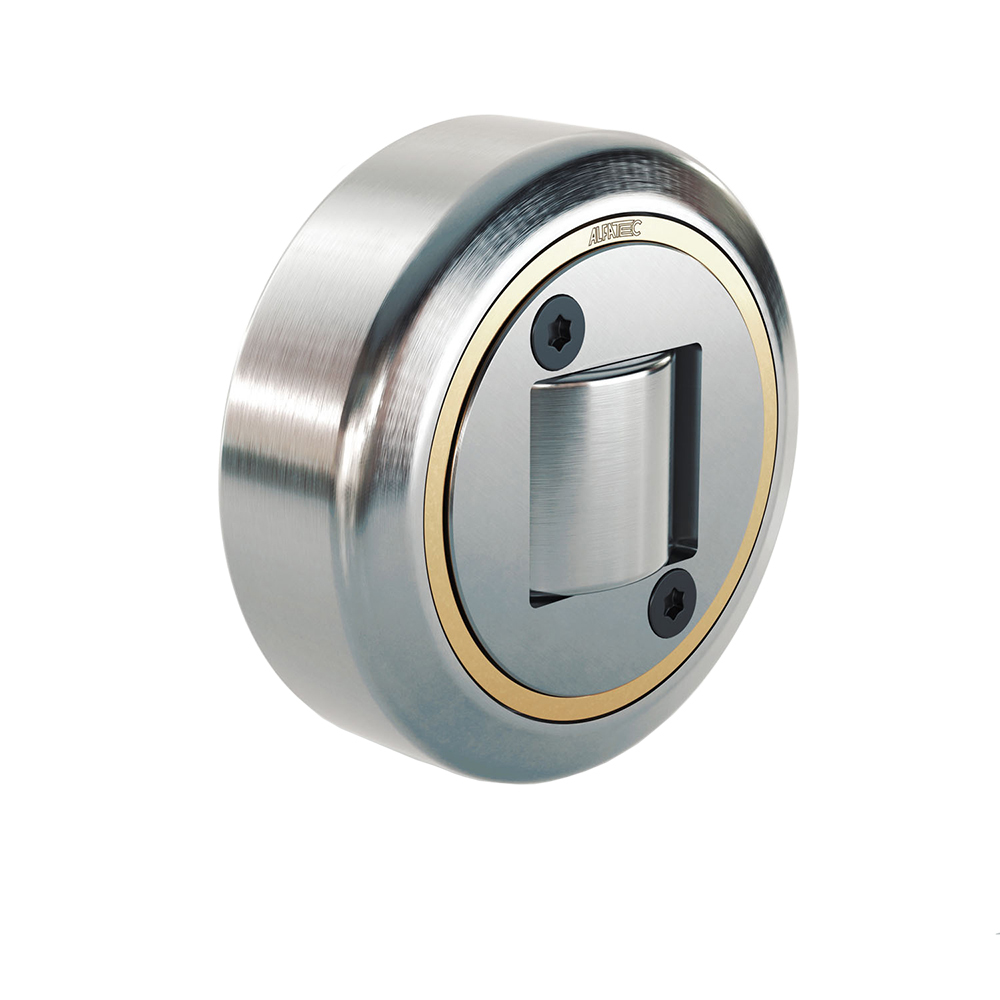

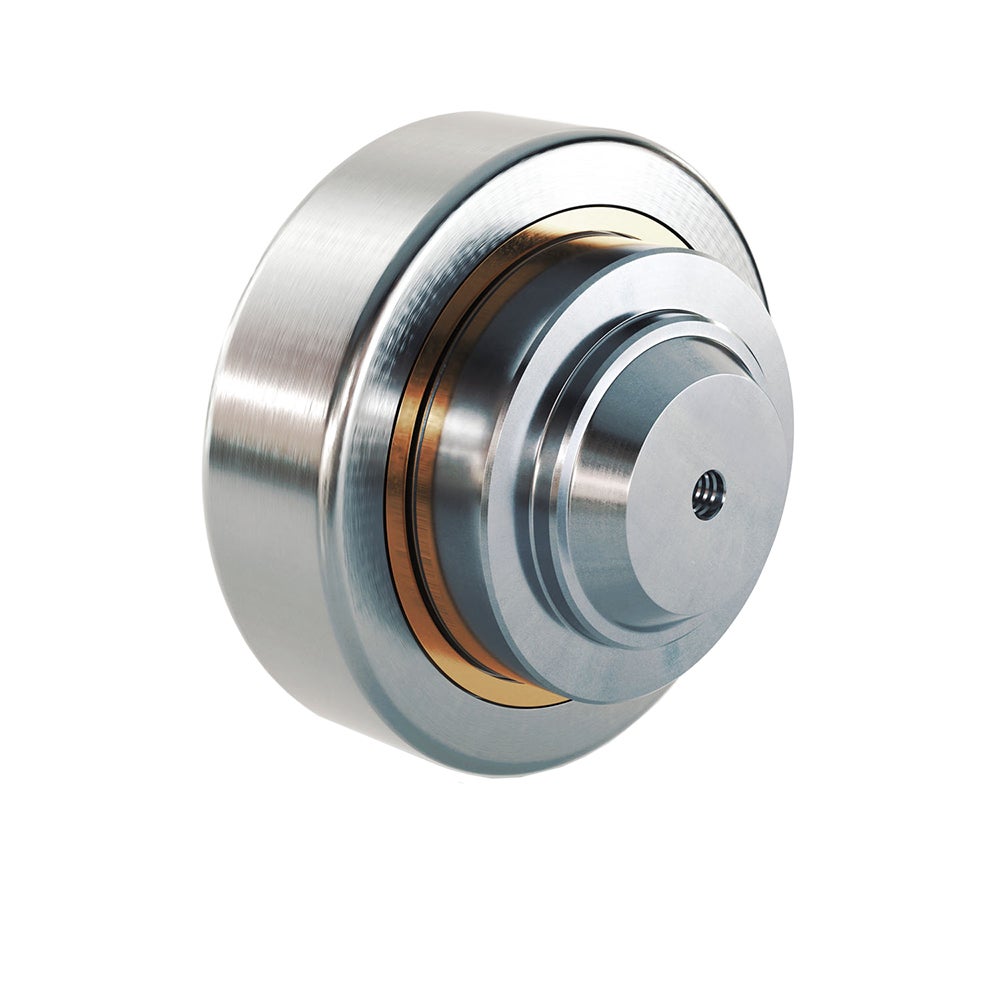

TR---.0200

• Lubricated for lifetime
• Optional from size 60 relubricable.

Use profile UP---.0700. Profile UP---.0730 for TR050.0200
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100
C = Dynamic load capacity radial bearing
Ca = Static load capacity axial bearing

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.
Dimensions in mm.
Read more

Product Information

Roller Type: Standard
Sizes Available: 50; 60; 70; 80; 90; 110; 120; 150; 180
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile
Get quote 2 5300 2000 7500 24500 UP---.0730
Get quote 2 8870 2950 11000 31000 UP---.0700
Get quote 2 11400 3150 13000 45500 UP---.0700
Get quote 2 12870 5000 18000 48000 UP---.0700
Get quote 2 20370 5100 23000 68000 UP---.0700
Get quote 2 24060 8900 31000 81000 UP---.0700
Get quote 2 33440 9800 43000 110000 UP---.0700
Get quote 2 51940 17400 68000 151000 UP---.0700
Get quote 2 76000 23000 73000 207000 UP---.0700

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote B D F G H L R T U
Get quote 17 52.5 6 5 33 27 16 40 30
Get quote 20 62.5 7 9 37.5 30.5 20 42 30
Get quote 23 70.1 8 10.5 44 36 22 48 35
Get quote 23 77.7 11.5 10.5 48 36.5 24 54 40
Get quote 30 88.4 13 10.5 57 44 26 59 45
Get quote 31 107.7 14 20 69 55 34 71 60
Get quote 37 123 16.3 14 72.3 56 40 80 60
Get quote 45 149 20 8.5 78.5 58.5 50 103 60
Get quote 57.3 180 19.4 12.5 95.7 76.3 60 124 100
