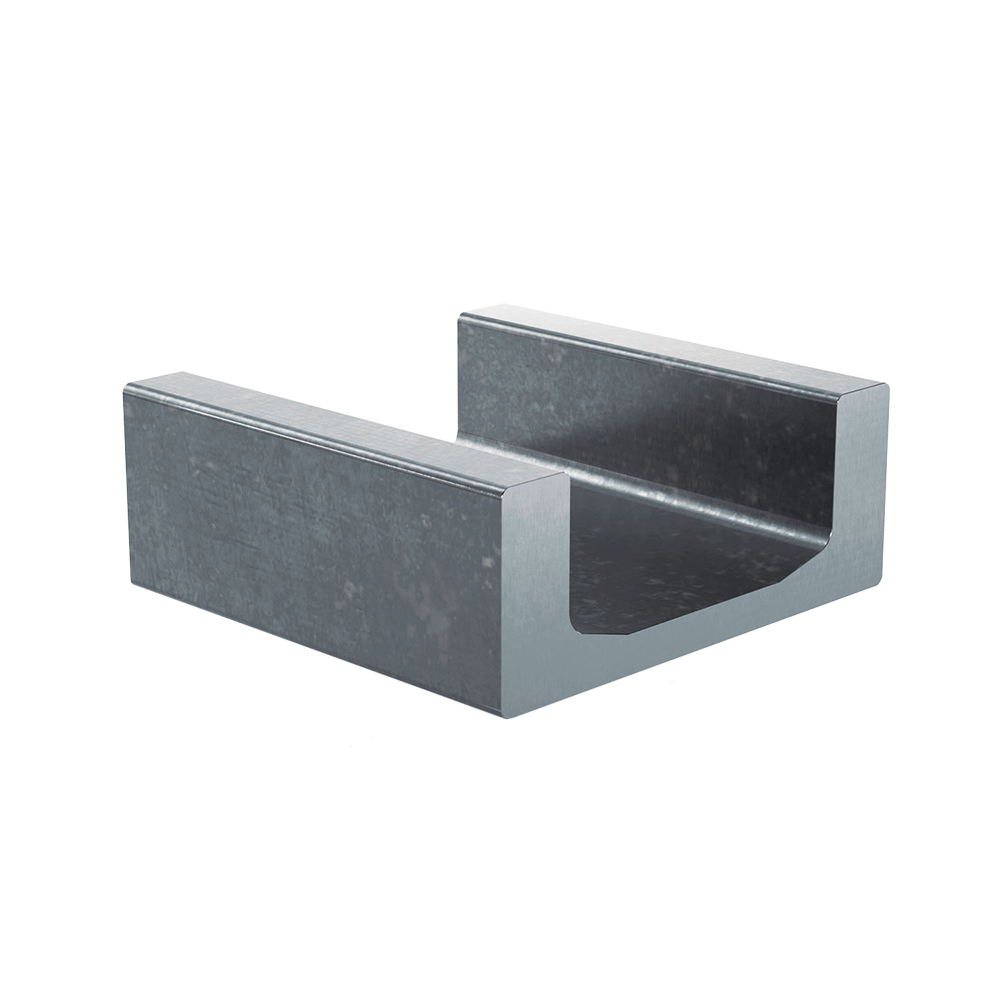

UP---.0780

STOCK ITEM
• Stainless steel U-Profile
• Manufacturing length up to 8000 mm

Ordering example: UP 070.0780-2800
U-Profile with inside measurement 74,1 mm, length 2800 mm

Dimensions in mm.
Read more

Product Information

Material: 1.4301
Sizes Available: 50; 70; 80
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * Weight (kg/m)
Get quote 1 5.30
Get quote 2 10.70
Get quote 2 21.00

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote B D H I T
Get quote 31 6 65 ±0.4 53 ±0.4 6
Get quote 38 ±0.8 8 ±0.5 90.5 ±0.8 71 ±0.8 9.75
Get quote 41 ±0.8 10.8 ±0.8 121.3 ±0.8 78.7 ±0.7 21.3

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

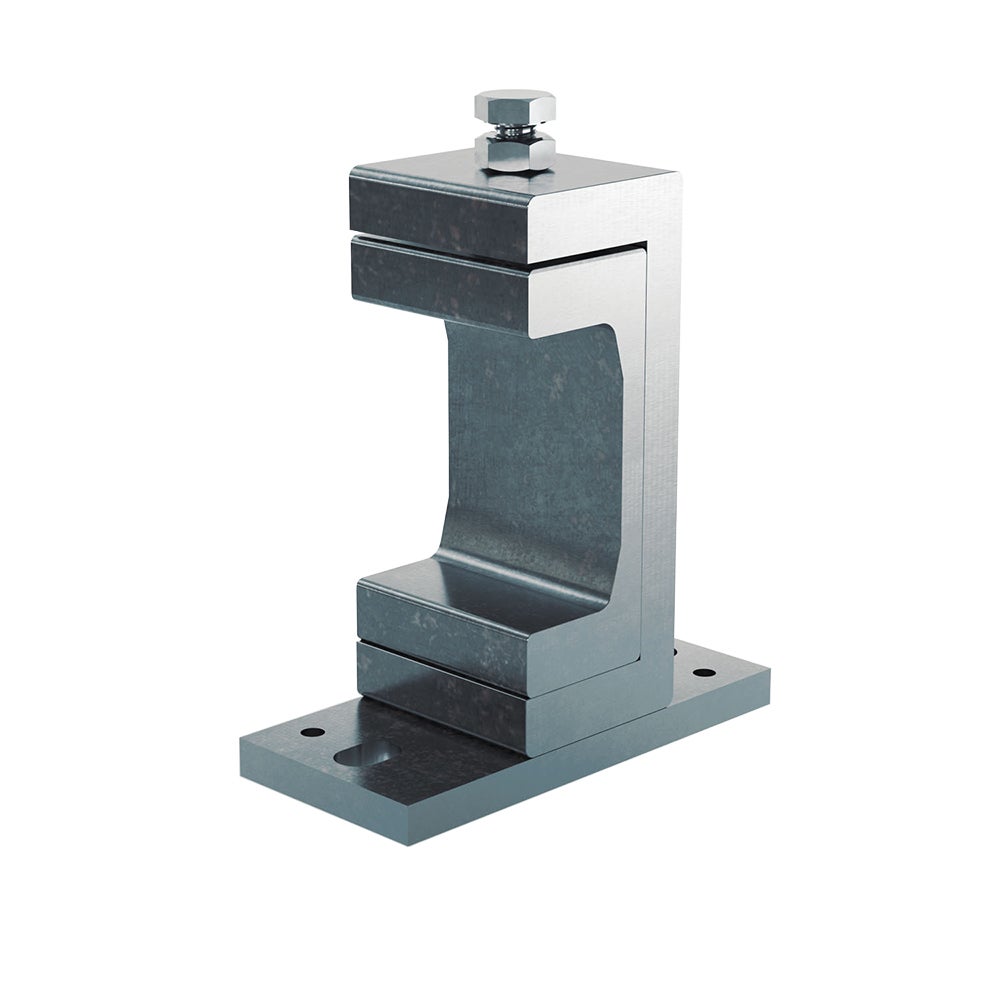

  • KS---.3650
