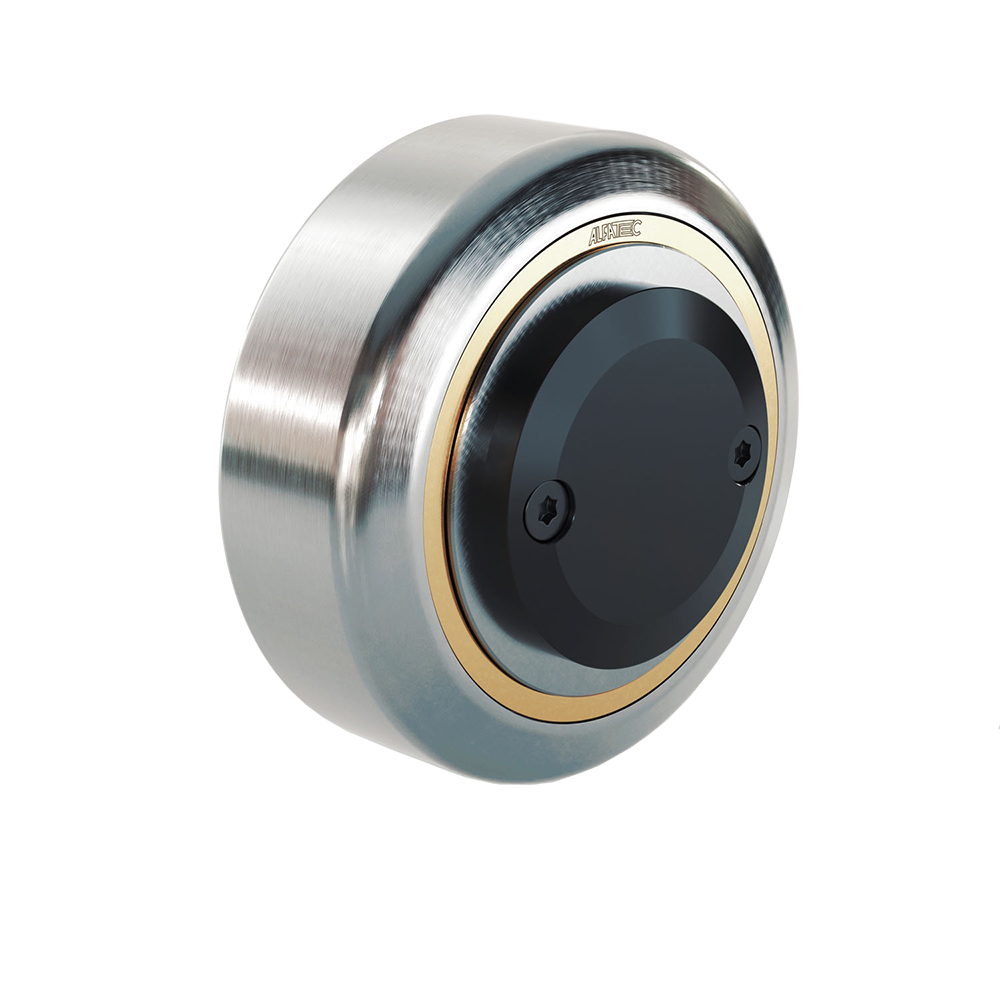

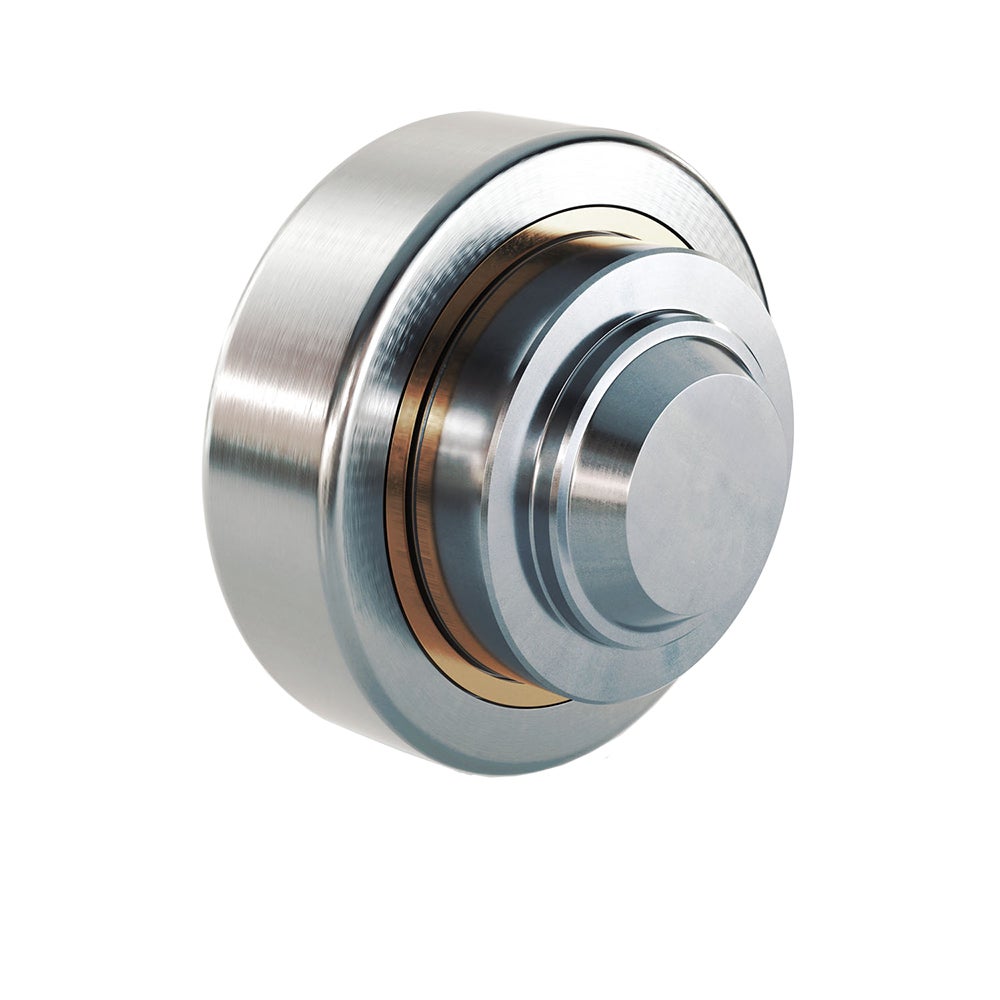

TR---.0390

• Combined – fixed with oilamide sliding block
• Completely made of 1.4301 stainless steel with bearing bush out of synthetic material

Use profile UP---.0780
Fixing square element BQ---.4000
Rectangular fixing element BR---.4100

For the adjustment of the axial clearance (A) distance rings will be used.

Order example: TR080.0390
Roller, stainless, Ø 77,7 mm

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Read more

Product Information

Roller Type: Stainless
Sizes Available: 50; 70; 80
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile
Get quote 2 3500 2000 3700 UP---.0780
Get quote 2 6000 3000 7000 UP---.0780
Get quote 2 7200 4000 7500 UP---.0780

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B D H L T U
Get quote 5 17 52.5 33 28 42 30
Get quote 6.5 23 70.1 48 40 54 35
Get quote 7 23 77.7 50.5 39.5 54 40

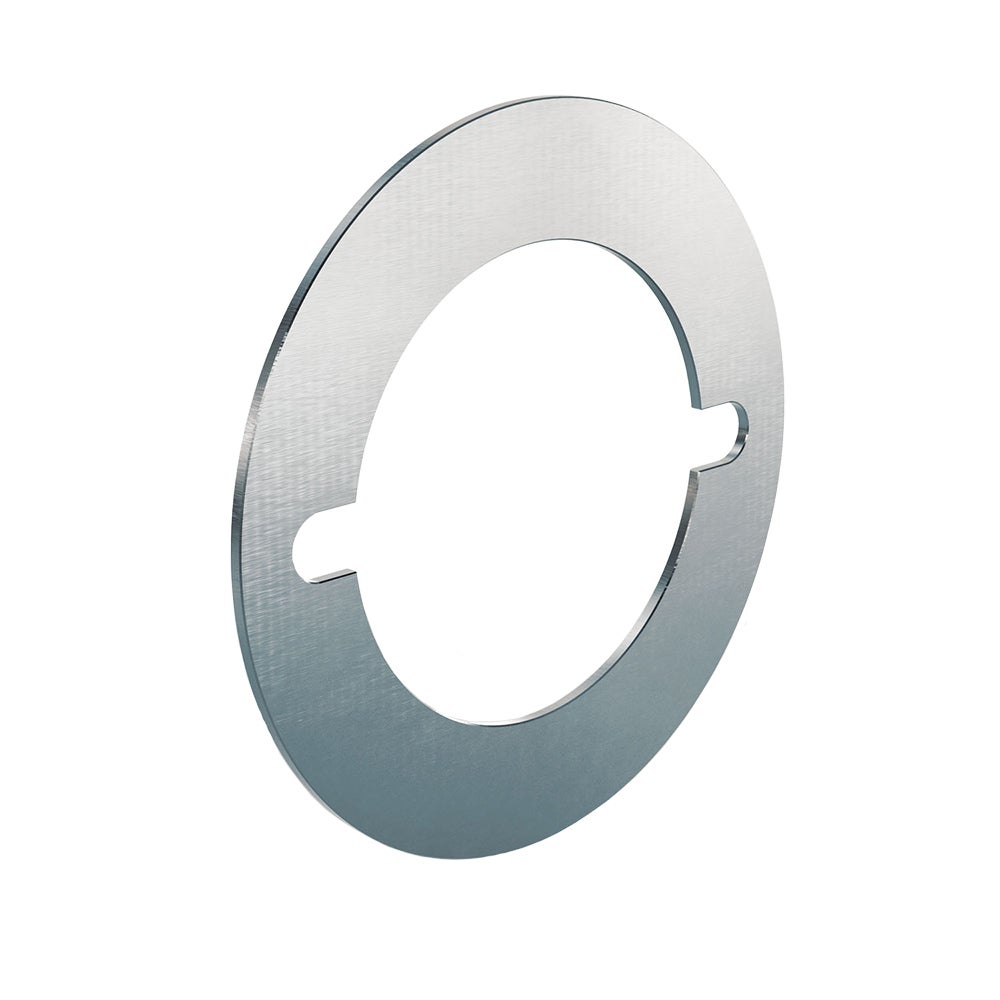

  • Distance Ring
    For adjustment of the axial clearance of Stainless Roller TR---.0390
