ST Stainless Dustproof Tape
Tape for improved rail sealing

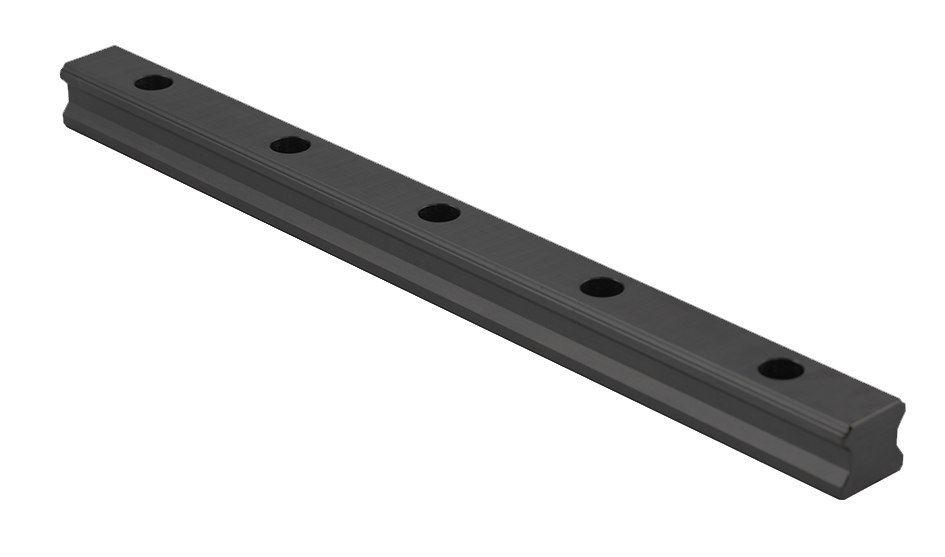

Standard Rail SBI Raydent
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.
Note: If the maximum length exceeds this size please contact Rollco.
Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.
Dimensions in mm.
For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.
Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Read more
Rails can be joint together for extra long lengths.
Contact Rollco for more information.
Note: If the maximum length exceeds this size please contact Rollco.
Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.
Dimensions in mm.
For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.
Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight Rail (g/m) | Recommended screw size |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 1300 | MC6S M4 | |||
|
|
|
1 | 2200 | MC6S M5 | |||
|
|
|
1 | 3000 | MC6S M6 | |||
|
|
|
1 | 4250 | MC6S M8 | |||
|
|
|
1 | 6020 | MC6S M8 | |||
|
|
|
1 | 9770 | MC6S M12 | |||
|
|
|
2 | 13720 | MC6S M14 | |||
|
|
|
2 | 23170 | MC6S M16 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | W1 | H1 | D x d x g1 | Hole Pitch (P) | G | Length |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
15 | 13 | 7.5 x 4.5 x 5.5 | 60 | 20 | 3000 | |||
|
|
|
20 | 16.5 | 9.5 x 6 x 8.5 | 60 | 20 | 4000 | |||
|
|
|
23 | 20 | 11 x 7 x 9 | 60 | 20 | 4000 | |||
|
|
|
28 | 23 | 14 x 9 x 12 | 80 | 20 | 4000 | |||
|
|
|
34 | 26 | 14 x 9 x 12 | 80 | 20 | 4000 | |||
|
|
|
45 | 32 | 20 x 14 x 17 | 105 | 22.5 | 4000 | |||
|
|
|
53 | 38 | 23 x 16 x 20 | 120 | 30 | 4000 | |||
|
|
|
63 | 53 | 26 x 18 x 22 | 150 | 35 | 4000 |
-
