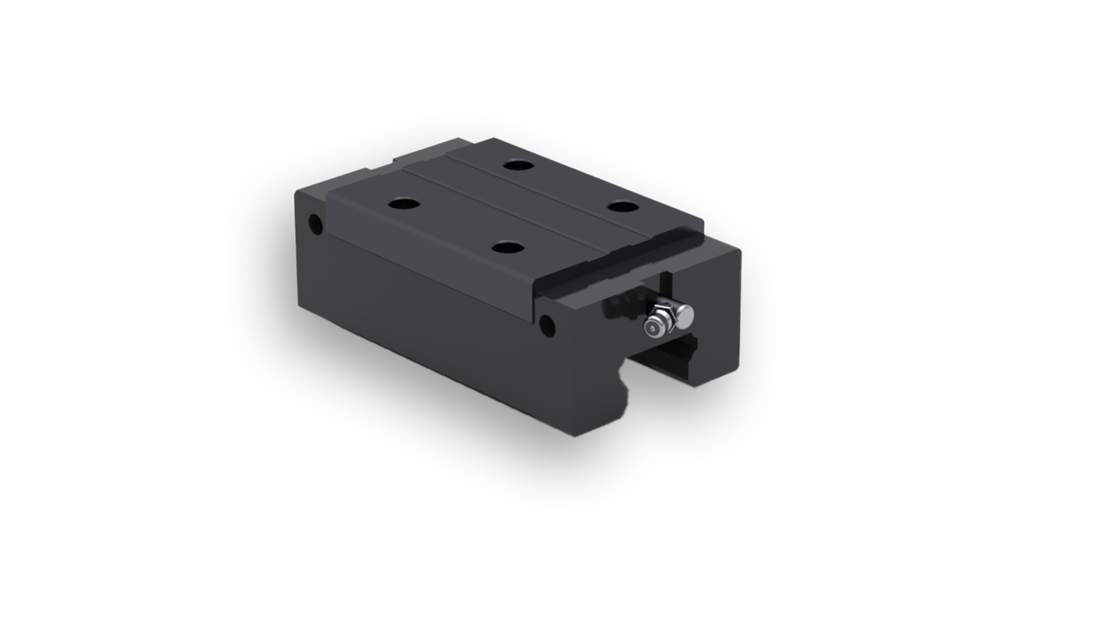

SBI SL Raydent
Standard block without flange.
Side nipple, dustproof end seal and self-lubricant container end seal as option.
* S: Bolt size for bottom mounting type of block
Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Read more
Side nipple, dustproof end seal and self-lubricant container end seal as option.
* S: Bolt size for bottom mounting type of block
Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Dynamic Moment Mr (Nm) | Dynamic Moment Mp (Nm) | Dynamic Moment My (Nm) | Weight Block (g) | Weight Rail (g/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 14100 | 24100 | 160 | 170 | 170 | 94 | 99 | 99 | 190 | 1300 | |||
|
|
|
1 | 22200 | 38200 | 360 | 330 | 330 | 209 | 192 | 192 | 410 | 2200 | |||
|
|
|
1 | 31500 | 52100 | 560 | 560 | 560 | 339 | 339 | 339 | 690 | 3000 | |||
|
|
|
2 | 42800 | 65400 | 850 | 770 | 770 | 556 | 504 | 504 | 1040 | 4250 | |||
|
|
|
2 | 59500 | 89100 | 1420 | 1280 | 1280 | 948 | 855 | 855 | 1560 | 6020 | |||
|
|
|
2 | 97200 | 116300 | 2480 | 1900 | 1900 | 2073 | 1588 | 1588 | 2800 | 9770 | |||
|
|
|
2 | 127300 | 181800 | 4810 | 2970 | 2970 | 3368 | 2080 | 2080 | 4420 | 13720 | |||
|
|
|
2 | 188300 | 261700 | 8240 | 5570 | 5570 | 5929 | 4008 | 4008 | 9100 | 23170 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L | H | W | W1 | W2 | L1 | H1 | h2 | S1 | S2 | D x d x g1 | Hole Pitch (P) | MxDP | N1 | N2 | N3 | P1 | P2 | E | G | P | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
63.8 | 28 | 34 | 15 | 9.5 | 45.2 | 13 | 25 | 8.5 | 7.8 | 7.5 x 4.5 x 5.5 | 60 | M4x5 | M4x0.7 | Ø 3.5 | 3.8 | 26 | 26 | 5.5 | 20 | 60 | 3000 | |||
|
|
|
78.8 | 30 | 44 | 20 | 12 | 56.8 | 16.5 | 25.4 | 6 | 5.8 | 9.5 x 6 x 8.5 | 60 | M5x5 | M6x0.75 | Ø 3.5 | 5 | 36 | 32 | 12 | 20 | 60 | 4000 | |||
|
|
|
92 | 40 | 48 | 23 | 12.5 | 70 | 20 | 34.5 | 10 | 9 | 11 x 7 x 9 | 60 | M6x8 | M6x0.75 | Ø 3.5 | 5 | 35 | 35 | 12 | 20 | 60 | 4000 | |||
|
|
|
107.6 | 45 | 60 | 28 | 16 | 79.6 | 23 | 38 | 11.5 | 10.8 | 14 x 9 x 12 | 80 | M8x10 | M6x0.75 | Ø 5.7 | 5 | 40 | 40 | 12 | 20 | 80 | 4000 | |||
|
|
|
124.6 | 55 | 70 | 34 | 18 | 94.6 | 26 | 47.5 | 15 | 15 | 14 x 9 x 12 | 80 | M8x10 | M6x0.75 | Ø 5.7 | 6 | 50 | 50 | 12 | 20 | 80 | 4000 | |||
|
|
|
142 | 70 | 86 | 45 | 20.5 | 108 | 32 | 61 | 20.5 | 19.3 | 20 x 14 x 17 | 105 | M10x13 | PT1/8 | Ø 5.7 | 6.5 | 60 | 60 | 13.5 | 22.5 | 105 | 4000 | |||
|
|
|
172.4 | 80 | 100 | 53 | 23.5 | 131 | 38 | 68 | 22 | 22 | 23 x 16 x 20 | 120 | M12x18 | PT1/8 | Ø 8.7 | 8 | 75 | 75 | 13 | 30 | 120 | 4000 | |||
|
|
|
219.8 | 90 | 126 | 63 | 31.5 | 170.4 | 53 | 71 | 14 | 14 | 26 x 18 x 22 | 150 | M16x16 | PT1/8 | Ø 8.7 | 10 | 70 | 76 | 13 | 35 | 150 | 4000 |
-
-
