DBN28
Full extension w. guide rails, fixed and movable and two sliders
DBN22

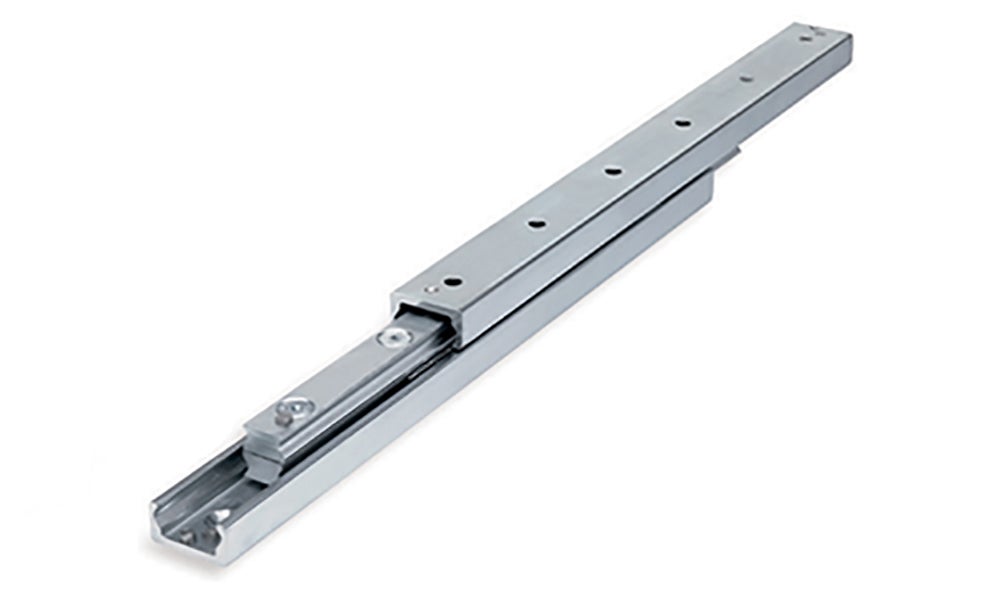

Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.
Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.
System Load Capacity Radial and System Load Capacity Axial values refers to a pair of rails. Dimensions in mm.
See Technical Information for further details, operating conditions and installation instructions.
Read more
Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.
System Load Capacity Radial and System Load Capacity Axial values refers to a pair of rails. Dimensions in mm.
See Technical Information for further details, operating conditions and installation instructions.
Product Information
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Length | Stroke | Weight (kg/m) | System Load Capacity Radial (N) | System Load Capacity Axial (N) | Number of Fixing Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 130 | 152 | 2.64 | 238 | 166 | 2 | |||
|
|
|
2 | 210 | 222 | 2.64 | 562 | 392 | 3 | |||
|
|
|
2 | 290 | 308 | 2.64 | 472 | 472 | 4 | |||
|
|
|
2 | 370 | 392 | 2.64 | 372 | 372 | 5 | |||
|
|
|
2 | 450 | 462 | 2.64 | 324 | 324 | 6 | |||
|
|
|
2 | 530 | 548 | 2.64 | 272 | 272 | 7 | |||
|
|
|
2 | 610 | 632 | 2.64 | 234 | 234 | 8 | |||
|
|
|
2 | 690 | 702 | 2.64 | 216 | 216 | 9 | |||
|
|
|
2 | 770 | 788 | 2.64 | 190 | 190 | 10 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
