DBN43

LOCALLY MANUFACTURED 66-266 kg/pair

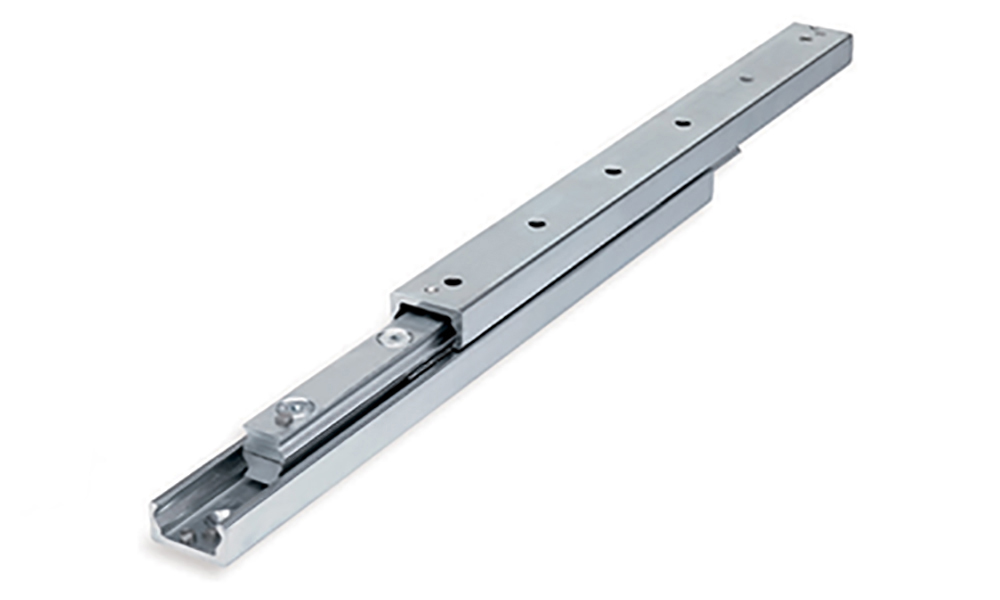

Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.

Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.

System Load Capacity Radial and System Load Capacity Axial values refers to a pair of rails. Dimensions in mm.

See Technical Information for further details, operating conditions and installation instructions.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Length Stroke Weight (kg/m) System Load Capacity Radial (N) System Load Capacity Axial (N) Number of Fixing Holes
2 210 246 10.5 1210 848 3
2 290 316 10.5 2228 1560 4
2 370 416 10.5 2600 1820 5
2 450 486 10.5 2662 2558 6
2 530 556 10.5 2386 2386 7
2 610 626 10.5 2164 2164 8
2 690 726 10.5 1824 1824 9
2 770 796 10.5 1690 1690 10
2 850 866 10.5 1576 1576 11
2 930 966 10.5 1386 1386 12
2 1010 1036 10.5 1308 1308 13
2 1090 1106 10.5 1238 1238 14
2 1170 1206 10.5 1118 1118 15
2 1250 1276 10.5 1066 1066 16
2 1330 1376 10.5 976 976 17
2 1410 1446 10.5 938 938 18
2 1490 1516 10.5 900 900 19
2 1570 1586 10.5 868 868 20
2 1650 1686 10.5 806 806 21
2 1730 1756 10.5 780 780 22
2 1810 1856 10.5 730 730 23
2 1890 1936 10.5 708 708 24
2 1970 2026 10.5 668 668 25
